Place of Origin: | CHINA |
Hàng hiệu: | G-ORIENT |
Chứng nhận: | CE, ROHS, FCC, SAA, TUV, etc., |
Model Number: | GDP18-E |
Minimum Order Quantity: | 100pcs |
---|---|
Giá bán: | Negotiable |
Packaging Details: | 96pcs/CTN, GW:6KGS, Carton Size: 48x28x25 cm |
Delivery Time: | 3-15 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200,000PCS/Mon |
Input Voltage: | AC85-265V | Output Voltage: | 24-42V |
---|---|---|---|
Output Current: | 500-600mA | Power: | 18-24W |
Efficiency: | 85 | Warranty: | 3 years |
Operation Tempature: | -25 ~ +55℃ | ||
Điểm nổi bật: | triac dimmable led driver,constant current led driver |

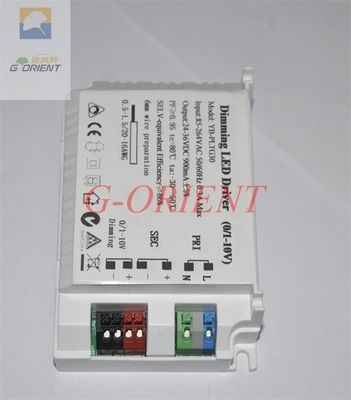

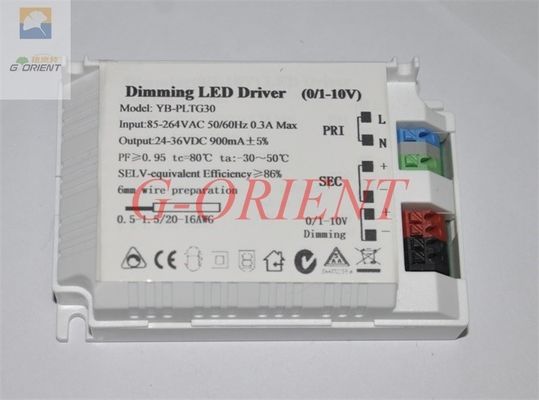

Universal 600ma 0-10V PWM Dimmable constant current led driver power supply
Features:
* 100% full load burn-in test
* Input Voltage: AC 85-264V
* Multiple Protections: Short circuit / Over load / Over voltage / Over temperature, Auto recovery
* Soft start with low ripple
* Leading or trailing edge dimming and universal dimming, 0/1-10V interface to be compatible with large-scale dimming system
* Output: Constant current
* Fit for class I protection lighting fixture
* Compliant with international standards, like safety, EMI, anti-interference, etc.,
* Compatible for most dimmers in the market, like Lutron, Philips, Sanken, etc.,
Applications:
* LED Panel, Down Light, Ceiling Light, Flood Light, etc.,
* Suitable for commecial and residential LED lamps
Specifications:
18-24W External constant current 0-10V LED dimmable Power Supply |
||
OUTPUT |
Voltage |
24-42VDC |
Current Range |
500-600ma |
|
Current Accuracy |
5% |
|
Rated Power Range |
18-24W |
|
Efficiency(Full Loaded) |
≥0.85 |
|
Current Ripple |
≤520mAp-p |
|
INPUT |
Voltage Range |
100-120/200-240VAC |
Frequency Range |
47-62Hz |
|
Power Factor |
≥0.95 |
|
Inrush Current |
10A MAX(230VAC) |
|
Leakage Current |
≤0.5mA |
|
Protection |
Over load/Over Voltage/Over Temperature/Short Circuit Protection |
150% Rated output power, OTP≥120±5℃, |
Environment |
Working Temp. |
-25 ~ +55℃ |
Working Humidity |
20 ~ 90% RH, non-condensing |
|
Storage Temp., Humidity |
-40 ~ +50℃, 5 ~ 95% RH |
|
Temp. Coefficient |
+/-0.03%/℃ (0 ~ 50℃) |
|
Feature |
Dimension |
103*67*31 (L*W*H) |
Weight |
39g |
|
Others
|
Voltage Resistance |
IP-OP: 3Kvac/5Ma/1 min |
Conformance with Regulation |
EN55015, EN610003-2Classic, EN610003-3 |
Competitive Advantages:
* PFC>0.95
* High efficiency up to 85%
* Wide-range Dimming: 5-100%
* Flicker free, No Flash
* 3 years warranty
* CE / ROHS / FCC/SAA approval, Tuv, etc.,
* Customized is available
Company Advantage:
* Professional R&D team
* High quality products
* Short production lead time: 7-15 working days
* Standardized production process
* 10 years in LED lighting and power supply manufacture
The Dimmer Wiring Diagram
