| Place of Origin: | China |
| Hàng hiệu: | DongDaHua |
| Chứng nhận: | CE,RoHS |
| Model Number: | PF-75-12 |
| Minimum Order Quantity: | 10 |
|---|---|
| Giá bán: | / |
| Packaging Details: | as for your requirement |
| Delivery Time: | as per your order quantity |
| Payment Terms: | TT,paypal |
| Supply Ability: | 4000pcs/Day |
| Product Name: | Constant Voltage LED Driver | DC output power: | 75W |
|---|---|---|---|
| DC output voltage: | 12V 24V | Input voltage range: | 110-240V AC |
| Waterproof grade: | IP67 | Input frequency range: | 47Hz~63Hz |
| Làm nổi bật: | 12 volt led driver,waterproof led driver |
||

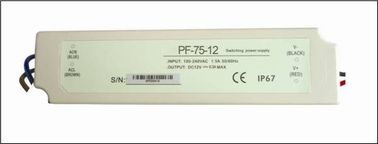

Small Compact Constant Voltage LED Driver 75W Suitable For LED Lighting
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Mini 75W 60Hz Constant Voltage High Voltage LED Driver 240V AC , Automatic Restoration
Features:
* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty
Descriptions:
|
Parameter |
Model: PF-75 |
|
|
DC output voltage |
12V±5% |
24V±5% |
|
Rated output current |
6.25A |
3.13A |
|
Output current range |
0-6.25A |
0-3.13A |
|
Ripple and Noise |
120mVp-p |
|
|
DC output power |
75W |
75W |
|
Efficiency |
85% |
85% |
|
Input voltage range |
110-240V AC |
|
|
Short-circuit protection |
Damage free short-circuit protection 3 times or more with automatic restoration |
|
|
Overload protection |
105-150% hiccup with automatic restoration |
|
|
Temp.coefficient |
±0.03%℃ ( 0-40℃ ) |
|
|
Voltage tolerance |
Input-output range: 1.5KvAC |
|
|
Working environmental temp. |
-10℃~+40℃ |
|
|
Waterproof grade |
IP67 |
|
|
Input frequency range |
47Hz~63Hz |
|
|
Storage temperature |
-20℃~+85℃ |
|
|
Dimension |
178*44*32mm |
|
|
weight |
0.43 kg |
|
