40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus

40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus

  • 40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus
  • 40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus
  • 40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus
  • 40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus
  • 40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus
40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: RAYTOP
Chứng nhận: CE, RoHS, FCC
Model Number: RT-ULA-040W-01S
Thanh toán:
Minimum Order Quantity: 1 pcs
Giá bán: negotiable
Packaging Details: Gift box or blister package,20 pcs per carton, customer package available.
Delivery Time: 15-20 working days.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30000 Pcs monthly.
Tiếp xúc
Chi tiết sản phẩm
Input Volt: AC100-240V, 50/60Hz, 1.5A Output Volt: 9.5-20VDC
Power: 40W Voltage Selection Manner: Mannual
AC Cable: 1.2M, 2x0.75mm2 DC Cable: 1.2M, 20AWG
AC Plug: EU,US, UK, AU Product Name: AC/DC Power Adapter
Protection: SCP, OVP, ODP Application: Acer,Asus,Gateway,Lenovo,HP,Delta,Sony,Toshiba
Approval: CE, RoHS, FCC
Làm nổi bật:

Switching mode power adapter

,

ac to dc power supply



40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus





Quick Detail:



Universal laptop adapter 40W, manual output voltage9.5-20V, for Mini Notebook and Netbook.





Specs:



Input: AC100-240V, 1.2A max.

Output: DC9.5/12/16/18/20V, 2.0A

Power Cord:

AC Cable: 2x0.75mm2, flat, length: 1.2M

DC Cable: 20AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC





Features:



- High efficiency, up to 85%;

- Protection: Short circuit protection, over voltage protection, over current protection.

- MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years

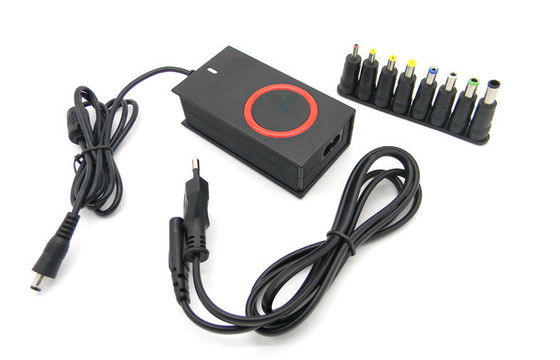

Contents: 1 Adapter + 1AC Cable+1DC Cable +7 Connectors





Description:

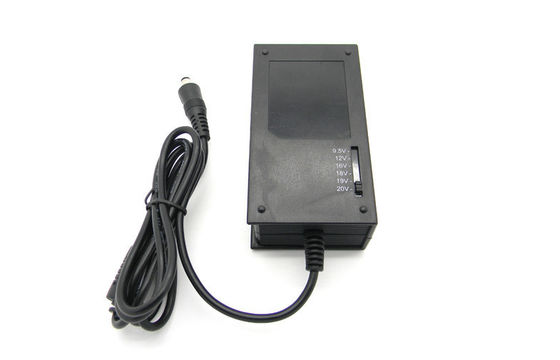

This is an universal laptop AC adapter come with unique design and 7 exchangeable tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Gateway, Lenovo  etc. The users can adjust the slider on the back of the adapter to get 6 different output voltage 9.5/12/16/18/19/20V. The adapter has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.

Note: please select correct output voltage before connecting the adapter with your laptops.





Applications:



used for most top brand notebooks and netbooks as external power supply, easy to charge your laptops during travel and at home.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.2A

Inrush Current

30A

Output

Rated Output Voltage

DC 9.5~20V

Output Voltage

DC9.5/12/16/18/19/20V

Rated Output Current

2.0A

Rated Power

Max.40W

Ripple and Noise

120mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automaically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



- Open private model w/o extra cost for you, we can help you realize good ideas into products.

- 0.3% free backup of order quantity;

- Direct factory price without middle man.

- High performance-to-price ratio;

- Perfect after-sale service
