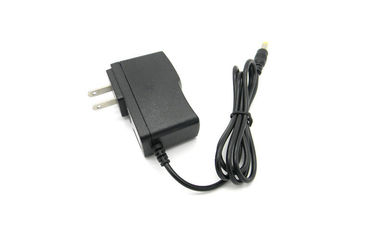

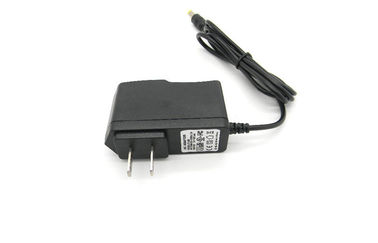

AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit

AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit

  • AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
  • AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
  • AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
  • AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: RAYTOP
Chứng nhận: CE, RoHS, FCC
Model Number: ET0500200
Thanh toán:
Minimum Order Quantity: 2K
Giá bán: Negotiable
Packaging Details: PE Bag, Master Carton, Customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Tiếp xúc
Chi tiết sản phẩm
AC Cable: 1.2M Application: Printer, ADSL, SATA
Approval: CE, RoHS, FCC, SAA, UL Cable Material: Copper
DC Cable: 1.2M EMI Standards: FCC Part 15B
Feature: High Efficency Input: AC100-240V
Output: DC 5V 2.0A Output Power: 10W
Plug: EU, US, UK, SAA, CCC Product Name: AC To DC Power Adapter
Protection: Short Circuit, Over Voltage, Over Current Operating Temperature: 0~40℃
Điểm nổi bật:

Wall Mount Power Supply

,

ac to dc power converter



AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit





Quick Detail:



10Watt Switching Power Adaptor, Desktop Style, DC 5V,2000A, 5.5x2.1mm Connector.





Specs:



Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC5V, 2000mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Tip: 5.5x2.1mm (optional)





Features:



-High efficiency:>85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC, UL, SAA

Warranty: 2 years





Description:



This is an AC to DC wall-mount power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





Note:



indoor use only.





Applications:



widely used for LED light, SATA, ADSL, digital photo frame, printer etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

0.2A

Inrush Current

30A

Output

Rated Output Voltage

DC5V

Rated Output Current

2000mA

Rated Power

10W

Ripple and Noise

120mV p-p

Standby Power Consumption

0.3W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
