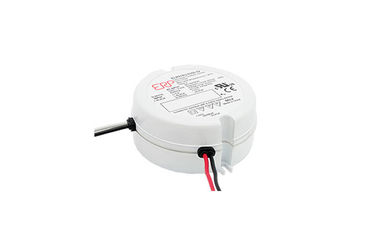

Round Shape Constant Current LED Drivers

Thông tin chi tiết sản phẩm:

Thanh toán:

Tiếp xúc

Chi tiết sản phẩm

Power:	9W/12W/18W	Nominal Input:	120 Vac or 230 Vac
Power Factor:	≥ 0.9	Output voltage:	12 V to 52 V
Output current:	200 mA to 1.0 A	Compact size:	66 mm (2.6 in) diameter
Điểm nổi bật:	led lighting accessories , led lighting parts

Features

120 Vac or 230 Vac nominal input
Active power factor correction (PF) ≥ 0.9
(PF ≥ 0.8 for 230 Vac models below 10 W)
High efficiency: 80~85%
Compatible with industry standard TRIAC and ELV dimmers
10% to 100% dimmable output
Output current: 200 mA to 1.0 A (see List of Models for details) with ±5% accuracy of set point
Output voltage: 12 V to 52 V (see List of Models for details)
Short circuit, over-current, over-voltage, and over-temperature protection with auto-recovery
Conducted and radiated EMI: FCC part 15 class B and EN55015 class B compliant
Enables ENERGY STAR® luminaire compliance
Round plastic case: 66 mm (2.6 in) diameter
IP20-rated case with silicone-encapsulation
90°C maximum case temperature
Lifetime: 50,000 hours at 70°C case temperature
Class II power supply
Worldwide safety approvals

Applications

120 Vac Nominal Input Voltage

ERP Part Number	Nominal Input Voltage (Vac)	Iout Set Point +/-5% (mA)	Max Output Power (W)	Output Voltage Range (Vdc)
6 to 9 W
ELR009U-0200-42	120	200	8.4	32 - 42
ELR009U-0300-21	120	300	6.3	15 - 21
ELR009U-0300-27	120	300	8.1	20 - 27
ELR009U-0330-24	120	330	7.92	16 - 24
ELR009U-0350-21	120	350	7.35	15 - 21
ELR009U-0380-24	120	380	9.12	16 - 24
ELR009U-0500-18	120	500	9	12 - 18
10 to 12 W
ELR012U-0250-42	120	250	10.5	24 - 42
ELR012U-0285-36	120	285	10.26	22 - 36
ELR012U-0285-42	120	285	11.97	32 - 42
ELR012U-0300-34	120	300	10.2	25 - 34
ELR012U-0300-42	120	300	12.6	24 - 42
ELR012U-0350-32	120	350	11.2	18 - 32
ELR012U-0350-35	120	350	12.25	24 - 35
ELR012U-0440-24	120	440	10.56	16 - 24
ELR012U-0475-24	120	475	11.4	16 - 24
13 to 18 W
ELR018U-0350-42	120	350	14.7	32 - 42
ELR018U-0350-52	120	350	18.2	36 - 52
ELR018U-0380-42	120	380	15.96	32 - 42
ELR018U-0440-34	120	440	14.96	22 - 34
ELR018U-0500-36	120	500	18	25 - 36
ELR018U-0550-24	120	550	13.2	16 - 24
ELR018U-0700-24	120	700	16.8	16 - 24
ELR018U-1000-18	120	1000	18	12.6 - 18

230 Vac Nominal Input Voltage

ERP Part Number	Nominal Input Voltage (Vac)	Iout Set Point +/-5% (mA)	Max Output Power (W)	Output Voltage Range (Vdc)
6 to 9 W
ELR009E-0200-42	230	200	8.4	32 - 42
10 to 12 W
ELR012E-0440-24	230	440	10.56	16 - 24
13 to 18 W
ELR018E-0350-42	230	350	14.7	32 - 42
ELR018E-0350-52	230	350	18.2	36 - 52
ELR018E-0440-34	230	440	14.96	22 - 34
ELR018E-0500-36	230	500	18	25 - 36
ELR018E-0700-24	230	700	16.8	14 - 24
ELR018E-1000-18	230	1000	18	12.6 - 18
