Place of Origin: | China |
Hàng hiệu: | Modern |
Chứng nhận: | ISO 9001 |
Model Number: | BUD |
Minimum Order Quantity: | 1 |
---|---|
Giá bán: | negotiation |
Packaging Details: | Wooden Packing |
Delivery Time: | 30 days |
Payment Terms: | T/T |
Supply Ability: | 1000 unit/month |
Điểm nổi bật: | industrial uninterruptible power supply,uninterruptible power supply ups systems |
---|

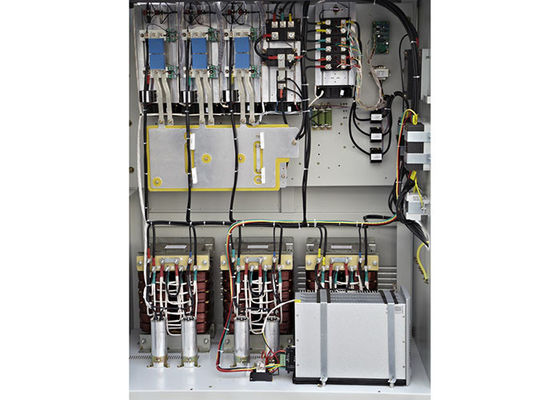

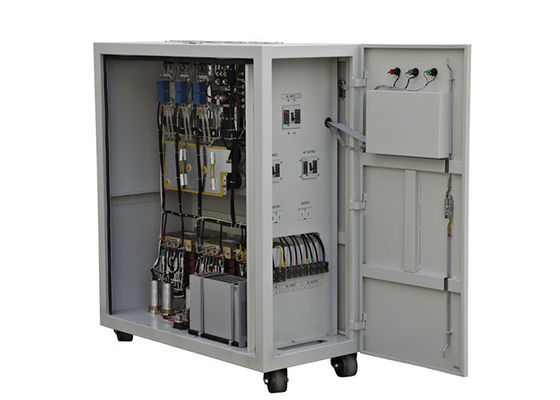

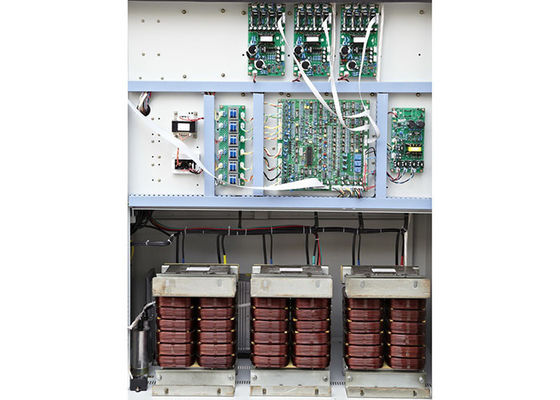

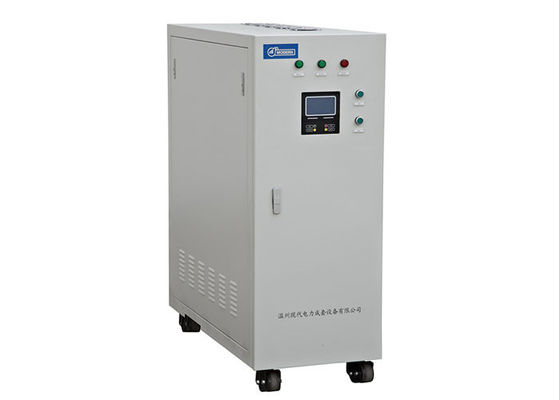

10KVA 220V Uninterruptible Power Supply (Online type UPS)
Quick Detail:
Online Type UPS-5KVA to 200KVA
Dimension(W×D×H)mm: 550×485×200
Weight: 200kg
Description:
In the event of an AC power failure, the UPS will automatically transfer to battery power and continue to provide power without any interruption for the full amount of time you select. When power returns, the UPS will automatically recharge the batteries for the next unexpected power outage or disturbance.
MODERN BUD Series Industrial UPS are for the bad grid environment and the impact of power system load on the power requirements of high reliability, using the most advanced multi-CPU control technology developed by frequency pure-line intelligent UPS. MODERN UPS advantage lies in ultra-high-power design; single maximum power 750kVA, and in parallel multi-machine power up to 3000kVA, providing critical power protection for a range of applications.
Applications:
Specifications:
Model |
BUD220 -3050 |
BUD220 -3100 |
BUD220 -3150 |
BUD220 -3300 |
BUD220 -3500 |
BUD220 -31000 |
BUD220 -32000 |
||
DC Input | Rated Input Voltage (V) | 220 | |||||||
Rated Input Current (A) | 25.3 | 49.4 | 74 | 148 | 247 | 494 | 988 | ||
Input DC Voltage Range (V) | 180 ~ 300 | ||||||||
AC Input | Rating Input Voltage (V) | 220 ( Single-phase ) | 380 (3 phase 4 wires) | ||||||
Voltage Range (V) | 220 ± 15% | 380 ± 15% | |||||||
Input Frequency (Hz) | 45 ~ 60 | ||||||||
Power Factor (PF) | 0.9 | ||||||||
Bypass Input | Input Voltage Range (V) | 380 ± 15% (3 phase 4 wires) | |||||||
Rated Input Current (A) | 7.6 | 15.2 | 22.8 | 45.6 | 76 | 152 | 304 | ||
AC Output | Rated Capacity (KVA) | 5 | 10 | 15 | 30 | 50 | 100 | 200 | |
Rated Output Power (KW) | 4 | 8 | 12 | 24 | 40 | 80 | 160 | ||
Rated Output Voltage | 380VAC , 50Hz (3 phase 4 wires) | ||||||||
Rated Output Current (A) | 7.6 | 15.2 | 22.8 | 45.6 | 76 | 152 | 304 | ||
Output Voltage Accuracy (V) | 380 ± 3% | ||||||||
Output Frequency Accuracy (Hz) | 50 ± 0.05 | ||||||||
Waveform Deviation Factor (THD) - Liner Load |
≤ 5% | ||||||||
Three-Phase load Unbalance Ability | ≤ 100% | ||||||||
Dynamic Response ( load 0 ←→ 100%) |
5% | ||||||||
Power Factor (PF) | 0.8 | ||||||||
Load ability | 150%,10 seconds | ||||||||
Crest Factor (CF) | 3:1 | ||||||||
Inverted Efficiency (80% resistance load ) |
92% | ||||||||
Switch Time (ms) |
AC ⇋ DC | 0 | |||||||
|
4 | ||||||||
Working Environment | Insulation Strength | 2000V AC ,1 minute | |||||||
Noise (1 meter) | ≤ 50dB | ||||||||
Using Condition Temperature | -10 ℃ ~+ 50 ℃ | ||||||||
Humidity | 0~90%, no condensing | ||||||||
Using Altitude (m) | ≤ 2000 | ||||||||
Machine Dimension | Width×Depth×Height(mm) | 550×485×1200 | 800×600×2260 (1 or 2 cabinet) |
1000×800 × 2260 (1 or 2 cabinet) |
|||||
Reference Weight (Kg) | 90 | 200 | 250 | 450 | 620 | 950 | 2300 | ||
Fault dry contact |
Inverter abnormal,AC abnormal,battry abnormal, load abnormal,UPS abnormal |
||||||||
Protection function |
Input reversing protection,input low-voltage protection, output over-load protection,output short-circuit protection, over-heat protection |
Competitive Advantage:
