| Công viên Gaoxin công nghiệp, Guangming New Zone, thành phố Thâm Quyến, tỉnh Quảng Đông, Trung Quốc | Angelwang66@126.com |
 |
| Place of Origin: | China |
| Hàng hiệu: | SYF |
| Chứng nhận: | ISO9001:2008, REACH, UL, SGS, RoHs |
| Model Number: | SYF-311 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Giá bán: | Negotiation |
| Packaging Details: | OUTER CARDBOARD CARTON WITH INNER VACCUM-PACKED |
| Delivery Time: | 8-10 DAYS |
| Payment Terms: | D/P,L/C,T/T,PAYPAL,WEST UNION |
| Supply Ability: | 1 MILLION PIECES PER MONTH |
| Solder Mask: | Green/Yellow/Red/Black | Materia: | FR4/FR1/CEM-1/CEM-2/Metal Core |
|---|---|---|---|
| Quality: | 100% E-TEST | Service: | PCB, PCBA, ODM, OEM |
| Production: | Gerber File or Design Data Needed. | Surface Finish: | HAL, OSP, HASL, ENIG, Immersion Tin, Immersion Silver |

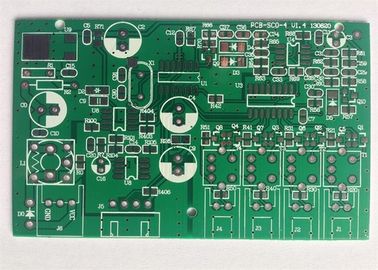

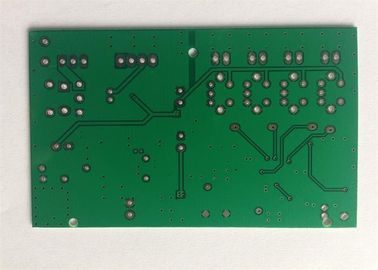

FR4 Custom PCB Boards 4 Layer HASL High Current Power Supply UL Certificate
Quick Details:
|
PRODUCTION OF PCB PRINTED CIRCUIT BOARD |
||
|
Engineering Process |
Items |
Production Capability |
|
Laminate Board |
Board Thickness |
0.2～3.2mm |
|
Product Type |
Layers |
2L-16L |
|
Lamination |
Max. Panel size |
500×600mm |
|
Layers Inside |
Core Thickness inside |
0.1～2.0mm |
|
Internal Tracing |
Min: 4/4mil |
|
|
Internal Copper Thickness |
1.0~3.0oz |
|
|
Dimension Tolerance |
Board Thickness Tolerance |
±10% |
|
Inter layer Alignment |
±3mil |
|
|
Drilling Tolerance |
Panel Measurement |
Max: 660×600mm |
|
Drilling Dimension |
≧0.25mm |
|
|
Hole Diameter Tolerance |
±0.05mm |
|
|
Hole Position Tolerance |
±0.076mm |
|
|
Min.Annular Ring |
0.05mm |
|
|
PTH+Panel Plating |
Hole Wall copper Thickness |
≧20um |
|
Uniformity |
≧90% |
|
|
Outer Layer |
Track Width |
Min: 0.08mm |
|
Track Spacing |
Min: 0.08mm |
|
|
Plating Pattern |
Finished Copper Thickness |
1oz～2oz |
|
EING/Flash Gold |
Nickel Thickness |
2.5um~5.0um |
|
Gold Thickness |
0.03~0.05um |
|
|
Solder Mask |
Thickness |
15～35um |
|
Solder Mask Bridge |
3mil |
|
|
Length |
Line width/Line spacing |
6/6mil |
|
ENIG |
Nickel Thickness |
≧120u〞 |
|
Gold Thickness |
1～50u〞 |
|
|
Beveling |
Beveling Dimension |
30～300mm |
|
Routing |
Tolerance of Dimension |
±0.1mm |
|
Slot Size |
Min:0.4mm |
|
|
Cutter Diameter |
0.8～2.4mm |
|
|
Punching |
Outline Tolerance |
±0.1mm |
|
Slot Size |
Min:0.5mm |
|
|
V-CUT |
V-CUT Dimension |
Min:60mm |
|
Angle |
15° 30° 45° |
|
|
Remain Thickness Tolerance |
±0.1mm |
|
|
Hot Air Level |
Tin Thickness |
100～300u〞 |
|
Test |
Testing Voltage |
250V |
|
Max.Dimension |
680×600mm |
|
|
Impedance Control |
Tolerance |
±10% |
|
Aspect Ration |
12:1 |
|
|
Laser Drilling Size |
4mil(0.1mm) |
|
|
Descriptions of Circuit Boards |
|
|
Basic Material |
Tg-180 FR4 |
|
Board Thickness |
2.0 mm |
|
Layer Count |
4-Layer |
|
Copper Thickness |
1.0 oz |
|
Surface Finish |
LEAD FREE HASL |
|
Solder Mask |
RED |
|
Silkscreen |
White |
|
Trace Spacing |
0.030/0.030mm |
|
Hole Size |
0.25mm |
|
Hole Copper Thickness |
≥20μm |
|
Measurement |
64×42mm |
|
Packages |
Outer: Cardboard Cartons with double straps Inner: Vacuum-packed in soft plastic bales |
|
Certification |
UL,ISO9001:2008,ROHS,REACH,SGS |
|
Superiority |
OEM&ODM,Competitive Price,Fast Delivery, |
|
Special Requirements |
BGA Soldering And Gold Finger Are Acceptable Buried And Blind Via, Impedance Control, Via Plug, |
|
Applications |
Communication,automobile,cell,computer,medical |
