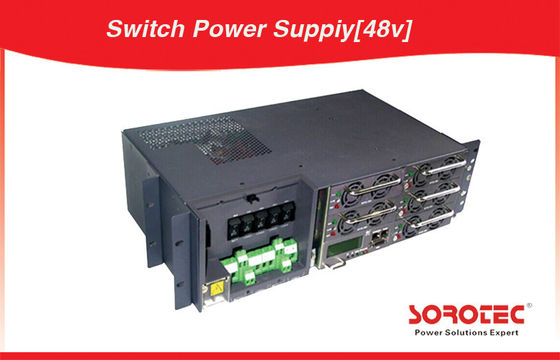

45-65HZ 48V DC Power Supply 90 - 285VAC Data Center Former Connection Wire Rectifier

45-65HZ 48V DC Power Supply 90 - 285VAC Data Center Former Connection Wire Rectifier

  • 45-65HZ 48V DC Power Supply 90 - 285VAC Data Center Former Connection Wire Rectifier
45-65HZ 48V DC Power Supply 90 - 285VAC Data Center Former Connection Wire Rectifier
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: SOROTEC
Chứng nhận: CE,ROHS,ISO9000
Model Number: Embeded System - 3U48V150A
Thanh toán:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Tiếp xúc
Chi tiết sản phẩm
Mức điện áp: 220V Phạm vi điện áp: 90-285VAC
Dải tần số: 45-65HZ Tối đa Hiện hành: 18,6A

45-65HZ 48V DC Power Supply 90 - 285VAC Data Center Former Connection Wire Rectifier

AC Input:
Rated input voltage :220VAC


AC input Voltage range :90-285VAC


AC INPUT Frequency range :45-65HZ


Power factor : ≥0.98


Efficiency : ≥91%



DC output:
Rated voltage:48VDC


AC Voltage range: 42-58VDC


System current : 150A


Module:SR4810,SR4815,SR4820,SR4830


Monitoring Module :STM-1


Mode of connection:Former connection wire Rectifier


DC distribution: Battery fuse 80A×1;


load Distribution: 4 road load battery Distribution : 2 road battery


Safety characteristics:
Input ----output 3000vac/10mA//1min No arcing, no breakdown


Input---- chassis 2500Vac/10mA//1min No arcing, no breakdown


Input---- chassis 500Vac/10mA//1min No arcing, no breakdown



Environment:
Operating temperature :-40-+70°c


Humidity :≤ 95% non-condensing


Mechanical characteristic :
Dimensions(W.H.D): 482.6mm×255mm×130.5mm


Weight(Kg); 15kg (include rectifier module)
