Place of Origin: | China |
Hàng hiệu: | Merrytek |
Chứng nhận: | CE |
Model Number: | ML75V-T1 |
Minimum Order Quantity: | 100pcs |
---|---|
Giá bán: | Negotiation |
Packaging Details: | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
Supply Ability: | 10,000pcs per month |
Product Name: | 75W 24Vdc Traic Dimmable Led Driver | Output load: | 1*75W max |
---|---|---|---|
Output Current: | 3.125A Max. | Output Voltage: | 24Vdc |
Input Voltage: | 220-240Vac | Dimming Mode: | Traic |
Working Temperature: | -25℃-50℃ | Isolation Class: | Class II, SELV |
Approvals: | CE | Protection Class: | IP20 |
Điểm nổi bật: | 24v constant voltage led driver,12v constant voltage led driver |

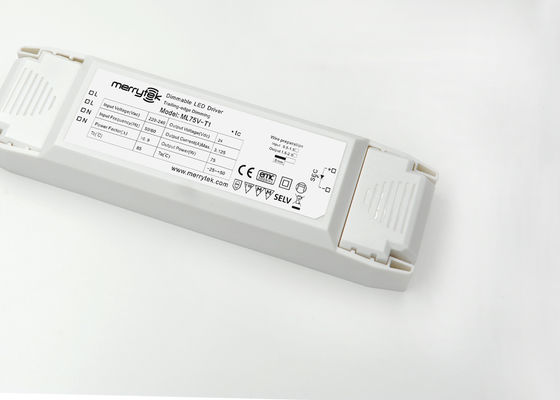

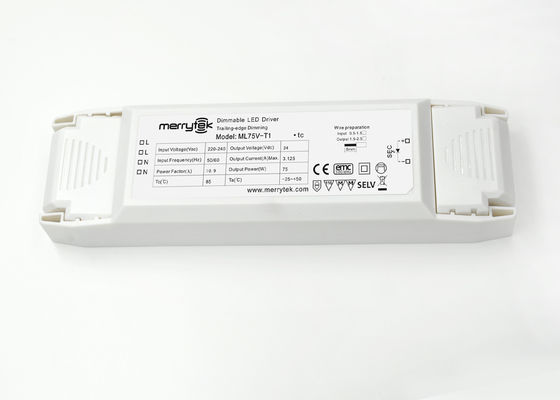

75W 24Vdc Constant Voltage Traic Dimmable LED Driver
Description:
1, trailing-edge dimming, compatible with popular dimmer in Euro.
2. This Triac dimmable led driver mainly works for led strip.
3, Protection: Short circuit / Over voltage / Over temperature.
4, Constant voltage 24Vdc
5, Dimming range: 10%-100%
6. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00
Specifications
Input |
Input voltage |
220-240Vac, 50/60Hz |
Power factor (PF) |
≥0.9(@ 240Vac input, full load and without dimmer) |
|
Efficiency |
≥82%(@ 240Vac input, full load and without dimmer) |
|
No-load power |
≤1.5W |
|
Output |
Output Voltage |
24V DC |
Output Current |
3.125A max. |
|
Voltage accuracy |
±5% |
|
Rated power |
75W Max. |
|
Dimming |
Dimming mode |
Trailing edge dimming |
Dimming range |
10%-100% |
|
Environment |
Working temperature |
-25℃~50℃ |
Storage temperature |
-40℃~80℃ |
|
Safety and EMC |
Insulation class |
Class II, SELV |
Withstand voltage |
Input-Output: 3.7kVac/5mA/1min |
|
EMC |
Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 |
|
Safety |
Compliance to EN61347-1, EN61347-2-13 |
|
Protection |
Short circuit |
Protection mode: Auto recovery |
Over temperature |
Protection mode: Auto recovery |
|
Others |
Dimension |
220x58x40mm |
Enclosure |
Plastic, white |
|
IP rating |
IP20 |
|
Connection |
Input: 4-hole press-in type terminal(L, L, N, N) Output: Screw terminal block (LED +, LED -) |
|
Life time |
30,000h |
|
Certification |
CE |
