Place of Origin: | Shenzhen |
Hàng hiệu: | Fiberroad |
Chứng nhận: | CE ROHS |
Model Number: | FR-POES-G8 |
Minimum Order Quantity: | 1pc |
---|---|
Giá bán: | Pls send request details |
Packaging Details: | Standard neutral or brand packing |
Delivery Time: | 2-3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5000pcs/Month |
Name: | POE Switch | Output Type:: | Single |
---|---|---|---|
Network Transfer Data Rate:: | 10/100/1000Mbps | Communication Mode:: | Full-Duplex & Half-Duplex |
Ports:: | 8 | Input Voltage:: | 220V |
Điểm nổi bật: | poe powered switch,poe power over ethernet |
What This Product Does

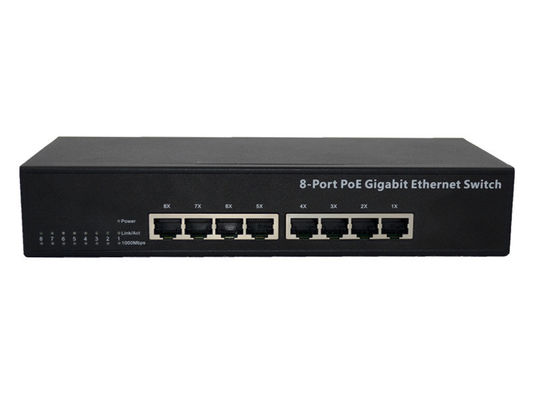

The 8-port 10/100/1000M Desktop PoE Switch provides the seamless network connection. It integrates 1000Mbps Fast Ethernet and 100Mbps Ethernet network capabilities.
It has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 120W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
*Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 13w (maximum power per port is 13W), the system power is 120w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 13w, and Port3 will use 10w, and no power will be supplied to Port 4.
It is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the SL-1008GP 8-port 10/100/1000M Desktop PoE Switch is a great selection for expanding your home or office network.
HARDWARE FEATURES | |
---|---|
Interface | 8 10/100/1000Mbps RJ45 Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
PoE Ports (RJ45) | 4 |
Backbound Bandwidth | 16Gbps |
Mac Address Table | 8K |
External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
Dimensions (W X D X H) |
|
SOFTWARE FEATURES | |
---|---|
Transmission Method | Store-And-Forward |
Advanced Functions | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
OTHERS | |
---|---|
Package Contents | Cable/DSL Router, Quick installation Guide, CD-ROM, Power Adapter, RJ-15 Ethernet Cable,Warranty Card |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
