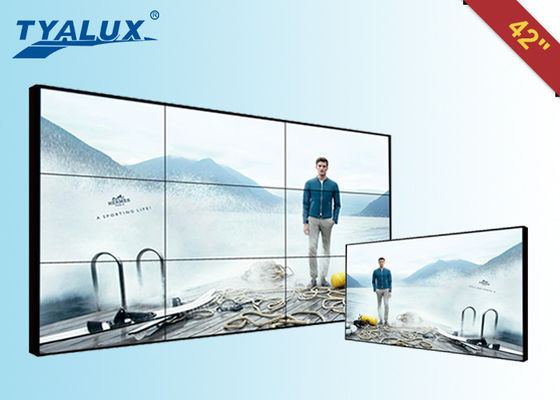

42 inch LG LCD CCTV Video Wall for Security Monitoring Center , Surveillance

42 inch LG LCD CCTV Video Wall for Security Monitoring Center , Surveillance

42 inch LG LCD CCTV Video Wall for Security Monitoring Center , Surveillance

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: Tyalux
Chứng nhận: CE/ROHS/FCC
Model Number: TYL-DID4209

Thanh toán:

Minimum Order Quantity: 4pcs
Giá bán: negotiation
Packaging Details: Three choices:carton box, wooden box or flight case
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or L/C western Union
Supply Ability: 3,000pcs per month
Liên hệ với bây giờ
Chi tiết sản phẩm
Product Name: LCD video wall Backlit: CCFL
Size Of Panel: LG 42inch lcd screen Resolution: 1920*1080
Brightness: 500cd/m2 Contrast ratio: 4000:1
Bezel width: 20mm Max consumption: 170W

LG LCD Monitor TV Video Wall HD 1920x1080P  for Security Monitoring Center



Description:



1: Narrow bezel between screens, thin bezel between screen after combine is 20mm

2: Input and output interfaces ensure the product application with maximum compatibility and flexibility.

3: All metal casing. Anti-static, anti magnetic-field and tamper-proof.

4: The green environmental protection design



Specifications:



Specifications

Model No.

TYL-DID4209

Screen size

LG 42inch lcd screen

Aspect Ratio

 16:9

Resolution

1920*1080

 Bezel width

20mm

Brightness (nits)

500cd/m2

Contrast

 4000:1

Visual angle (H/V)

178°

Response time

<=8ms

Life(hrs)

>60,000(hrs)

Input and output

BNC out

1

BNC in

2

VGA in

1

HDMI in

1

DVI in

1

YPBPR in

1

Power

Power supply

AC100V~240V

Maximum power consumption

170W

Standby power consumption

<=3W

Temperature

Working temperature

0°C~50°C

Working humidity

20%-80%

Appearance

Panel dimension( W x H x D) mm

957.5(L)*550.2(H)*120.7(D)mm

Acessory

Cable

Can supply different kinds of cable

Video Wall Controller(Built-in each screen)

Model No.

TYL-DP4609

Input

DVI

1*DVI

HDMI

1*HDMI

VGA

1*VGA, 15port, support SVGA/XGA/WXGA

BNC 2*BNC input, support  PAL/ NTSC  all formats

RS232

1*RS232 (RJ45)

Output RS232 1*RS232 (RJ45)

Output

BNC

1*BNC, support PAL/ NTSC  all formats

Operate  mode

Panel key operation(needs customization)

Standard RS232 port( provide free control software)

Infrared Remote Control Operation

 Engineering software

Customized

Working temperature

0~70 °C

working humidity

5~95 %RH

AC voltage power supply

100-240V/50, 60Hz

power consumption

50W

Weight

About 3.5KG

















Applications:



entertaiment bar,cinima and ktv,school and book shop,medical industry,working building,meeting room,toll stations,parks,ticket agencies,HR markets,model rooms,Security Monitoring Center, Surveillance,Show Center,Rental and advertising Center,Mass Info Display systems,Retail Shopping Mall Advertising,Public Installations





Why choose Weiguan Views:



1: We provide excellent customer service for pre-sale/on sale/after sale orders.

2: Unique DNX motion supplement image processing technology, Dynamic image without motion trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,

3: Professional service and honesty based. Reply your inquiry in 8 working hours.

4: Fast delivery. For standard model, sample is usually in stock. It can be shipped immediately after payment confirmation.
