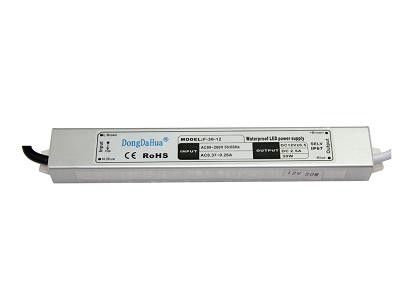

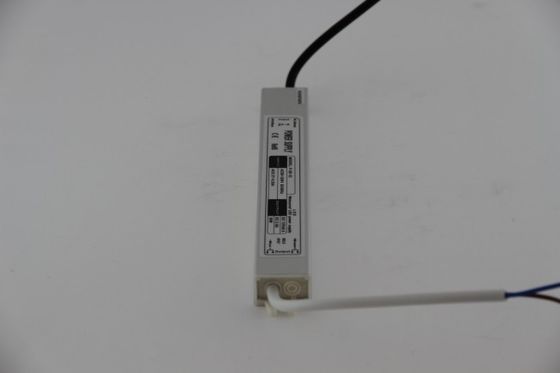

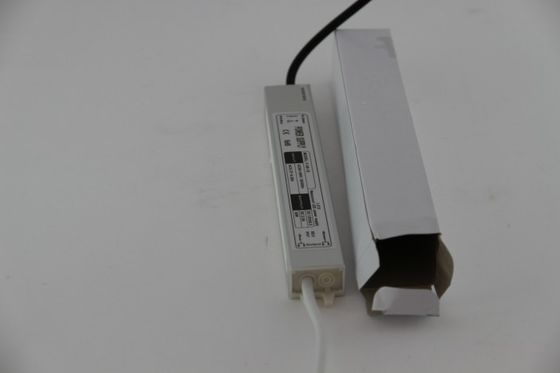

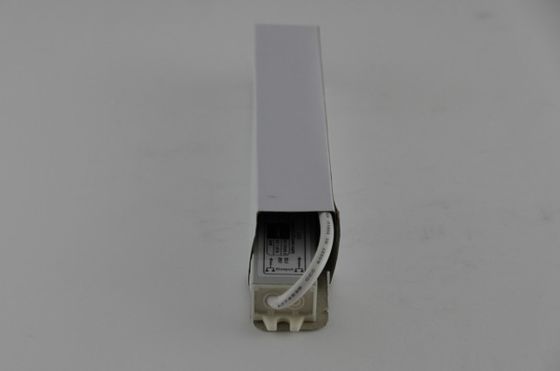

2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C

2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C

  • 2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C
  • 2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C
  • 2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C
  • 2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C
2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen China
Hàng hiệu: DongDaHua
Chứng nhận: CE & ROSH
Model Number: F-30-12
Thanh toán:
Minimum Order Quantity: 50PCS
Giá bán: Factory Price
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 4000 Pieces/Day
Tiếp xúc
Chi tiết sản phẩm
Product Name: Waterproof LED Driver Safety standards: EPA8270C
Current: 2.5A Output voltage: 12V DC
Output Power: 30W IP: IP68
Điểm nổi bật:

12v dc LED driver

,

12 volt led driver

Over-voltage Protection Waterproof LED Driver Power Supply 30W 12VDC 2.5A IP68 EPA8270C


Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble >50, 000 hours


Specifications:


Product Electric Parameters

Input specification

Input voltage

AC90V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC 40A@230VAC

Output specification

Start-up time

≦1S (230V Input, Io=100%)

keep time

≧20mS (230V Input, Io=100%)

Voltage regulation

(full)≦0.5%

Protection function

Overload protection

105% - 150% rated power, automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input--ground

1500VAC/1min

Output---ground

500VAC/1min

Safety standards

According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

200(L)*30(W)*20(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.26KG/P



Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

2500mA 12 V DC 30W Waterproof LED Driver / IP68 LED Power Supply EPA8270C 0
