| Place of Origin: | China |
| Hàng hiệu: | G-ORIENT |
| Chứng nhận: | CE, ROHS, SAA, FCC, TUV, etc., |
| Model Number: | GDW50-AE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Giá bán: | Negotiable |
| Packaging Details: | 40PCS/CTN, GW:8.5KGS, Carton Size: 31 x 19 x 17.5CM |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 60,000set/mon |
| Input Voltage: | 85-277VAC | Output Voltage: | 12-36VDC |
|---|---|---|---|
| Power Rated: | 50W | Efficiency: | 0.88 Max |
| Protecion Grade: | IP66 | PFC: | >0.95 |
| Chứng nhận: | CE,ROHS,FCC,SAA,TUV, etc., | Case: | Aluminum |
| Điểm nổi bật: | outdoor led power supply,constant current led power supply |
||
LED Tunnel light Waterproof Led Power Supply / constant current led driver
Features:
* Input Voltage: AC85-277V
* Output: Costant Current
* High efficiency, High reliability, Low cost
* Protections: Short circuit/Over load/Over voltage/High temperature
* Waterproof grade: IP66, water proof and dust proof
* Working Frequency: 65 KHz
* Suitable for LED lighting, Like LED Downlight, Flood Light, LED strip light, LED Wall Wash Light, etc.,
* Aluminum Case
Competitive Advantages:
* PFC＞0.95
* High efficiency up to 88%
* 3 years warranty
* CE / ROHS / FCC/SAA approval
* Customized is available
* IP66
Specification:
|
Model |
GDW50-AE-12 |
GDW50-AE-24 |
GDW50-AE-36 |
------ |
|
|
output |
DC voltage |
12V |
24V |
36V |
------ |
|
Voltage tolerance |
±1% |
±1% |
±1% |
------ |
|
|
Rated current |
4.2A |
2.1A |
1.4A |
------ |
|
|
Current range |
0~4.2A |
0~2.1A |
0~1.4A |
------ |
|
|
Rated power |
50.4W |
50.4W |
50.4W |
------ |
|
|
Ripple&noise |
100mvp-p |
150mvp-p |
180mvp-p |
------ |
|
|
input |
Voltage range |
AC85-277V,235~373VDC |
|||
|
Frequency |
47~63HZ |
||||
|
AC current |
0.5A/230VAC |
||||
|
Efficiency |
84% |
85% |
88% |
------ |
|
|
Inrush current |
Cold start current 35A/230VAC |
||||
|
Leakage current |
<1mA/240VAC |
||||
|
protection |
Over load |
Rated output power 115%~150%start over load protection |
|||
|
Protection type: hiccup mode,auto-recovery after fault condition is removed |
|||||
|
Over voltage |
15.6~17.8V |
30.6~33.2V |
42.6~44.2V |
------- |
|
|
Protection type: hiccup mode,auto-recovery after fault condition is removed |
|||||
|
Over temperature |
Shell temp≥85°C,start over temperature protection |
||||
|
Protection mode: cutoff output,auto-recovery after temperature become normal |
|||||
|
environment |
Working temp,humidity |
-10°C~+60°C,20%~90%RH |
|||
|
Storage temp.humidity |
-20°C~+85°C,10%~95%RH non condensing |
||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60minutes,each axes |
||||
|
safety |
Withstand voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC |
||||
|
Fits tandard |
Safety standard |
Fit UL1012,IP67 protect level |
|||
|
EMC standard |
Fit EN55022,CLASSA |
||||
|
Others |
Dimension |
139*42*29mm (L*W*H) |
|||
|
Weight/packing |
0.21kg/30pcs/10..5kg |
||||

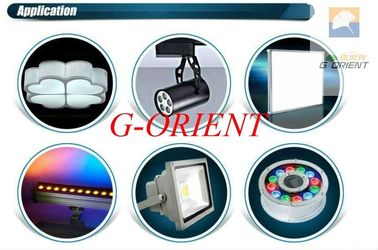

Application:
* Widely used in LED Lighting, LED Street light, LED flood Light, LED Tunnel light, Wall Wahs LED light, etc.,
* IP66 waterproof and dustproof, can operate in hard conditions and enviroment
