1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting

1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting

  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
  • 1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: DongDaHua
Chứng nhận: CE RoHS
Model Number: HF-050-36-20-1A50
Thanh toán:
Minimum Order Quantity: 10
Giá bán: /
Packaging Details: as per your request
Delivery Time: 3-7 days on averange
Payment Terms: TT;Paypal
Supply Ability: 3000pcs/Day
Tiếp xúc
Chi tiết sản phẩm
Product Name: Constant Current LED Driver Output Dc Voltage: 20~36V
Output Rated Current: 1500mA Input Frequency Range: 47~60Hz
Feature: High efficiency,long life and high reliabilit Safety Standards: CE Mark(LVD),IP67
Điểm nổi bật:

constant current led drivers

,

led light driver


1500mA Temperature Constant Current LED Driver 50W


 Quick detail:

Power: 50W

Input: 100-264V 50-60HZ

Output: DC 12V 24V

Size:  140*42*28

Certificate: CE&ROHS

Warranty: 2 years



Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty




Specifications:


Model HF-050-36-20-1A50
Output Dc Voltage 20~36V±5%
Rated Current 1500mA
Rated Power 54W
Ripple&Noise(Max) 200mV
Current Tolerance ±10mA
Setup,Rise Time 100ms/220VAC
Hold Up Time(Typ.) 80ms/220VAC
Input Voltage Range 110~250VAC
Frequency Range 47~60Hz
Power Factor(Typ) PF>0.5/220VAC
Efficiency(Typ) 83%
Ac Current(Typ)  0.5A/235V
Inrush Current(Typ) Cold-start current 1.5A/235V
Protection Short Circuit Protection type:recovers automatically after fault conditions is removed
Overlaod Overload protection@145~160%above peak rating
Over Temperature protection typer:shut down o/p voltage.re-power on to recover
Environment Working Temp -30~ +60℃(Refer to output load derating curve)
Working Humidity 20~90%RH no-condensing (Waterproof)
Storage Temp Humidity -40~ +80℃,10~90%RH
Safety&Emc Safety Standards CE Mark(LVD),IP67
Withstand Voltage I/P-O/P:1.5KVAC   IP-GND:1.5KVAC
Emc Test Standards EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
EN 61347-1:2008 EN 61347-2-13:2006
NOTE 1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.



1500mA Long Life 50W Constant Current LED Driver EMC For Indoor Kitchen Lighting

Features:

Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor


Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Quality assurance:

1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting 0

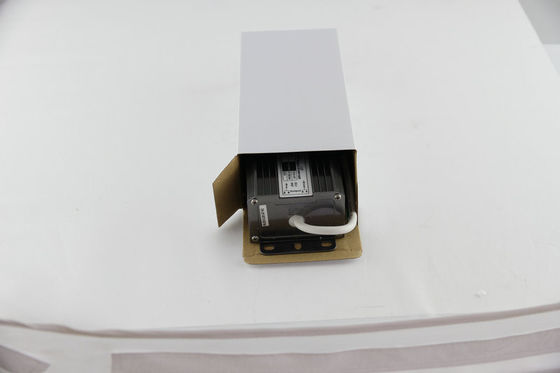

Delivery:


1500mA 50W Long Life Constant Current LED Driver EMC For Indoor Kitchen Lighting 1
