Place of Origin: | China |
Hàng hiệu: | FOCC |
Chứng nhận: | ISO9001; TUV; CE; FCC; CAS; UL and RoHS |
Model Number: | FOCC - FM004 |
Minimum Order Quantity: | 10 Pieces |
---|---|
Packaging Details: | Packed with Anti - static Bag in a Box ( Default Customer Options ); Specific Labels Requirement Available |
Delivery Time: | Delivery Time 5 - 7 Working Days |
Payment Terms: | Western Union, T/T, L/C, MoneyGram |
Supply Ability: | 8500 Pieces Of Capacity Per Month |
Color: | Black | Standard: | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX |
---|---|---|---|
TP Connection: | RJ-45; Cat 3, 4, 5 UTP | Fiber Connection: | ST / SC / FC |
Fiber Mode: | Multimode; Singlemode | Wave Length: | 1310nm / 1550nm |
Điểm nổi bật: | ethernet media converter,optical fiber media converter |

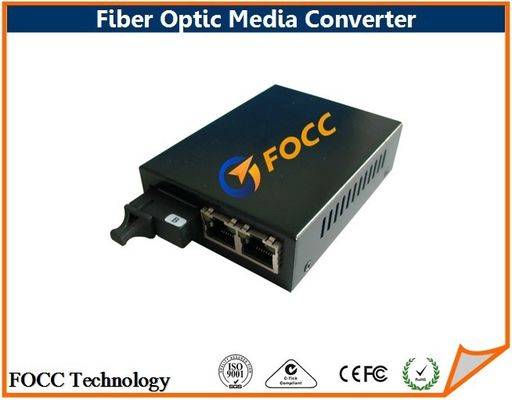

10/100M WDM BIDI Single Fiber Fast Ethernet Media Converter SC Connector 20km
This kind of 10/100Base Single Fiber Fast Media Converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX). It could extend traditional 10/100M Fast Ethernet to the distance of 80km through single optical fiber link. Its performance is stable and reliable, in line with the Ethernet design standards, and has anti-lightning protective measures. It must be used in couples. It is the campus broadband network, broadcasting network and intelligent broadband residential broadband fiber-to-floor fiber to the home of the best applications.
Features
Data rate: 10/100M;
UTP port supports: MDI / MDI-X auto crossover;
Optical interfaces: SC, ST or FC; single mode;
Supporting 1600 Byte packet;
Wavelength: 1310nm / 1550nm;
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction;
Converter working mode could be chosen: Store and forward switch mode, modified cut-through switch mode, or Converter mode;
Stand alone or card type can be chosen;
Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link;
To provide external DC power supply and built-in power supply in two forms.
Application
Operating standards: IEEE802. 3u, 10/100Base-TX and 100Base-FX;
MAC address table: 1K;
Data buffer: 128K;
UTP Connector: RJ-45 10/100Mbps;
Fiber Connector: SC 100Mbps;
UTP Cable: Cat. 5 UTP ( the max distance up to 100m );
Fiber ( Single mode ) Cable: 8. 3 / 125, 8. 7 / 125, 9 / 125, 10 / 125μm ( the max distance up to 90km );
Full Duplex: Supporting standard IEEE802. 3x;
Half Duplex: Back pressure;
Working temperature: 0 ~ 50℃;
Storage temperature: -20 ~ 70℃;
Humidity: 5% ~ 90% ( noncondensing ).
Specification
Manufacturer |
FOCC |
Part No. |
FOCC - FM004 |
Standard |
IEEE802.3 10BASE - T, IEEE802.3u 100BASE - TX/FX |
Data Rate |
10/100M |
Data Buffer | 128K |
UTP Connector | RJ-45 |
Fiber Connection |
ST / SC / FC |
Fiber Mode |
Multimode; Singlemode |
Wave Length |
1310nm / 1550nm |
Environment |
Working Temperature: -40 ~ 80, |
Humidity |
5% ~ 90% |
Technical Specifications
Desk Type Dual - Optical Singlemode / Multimode Media Converter |
||||||
Part No. |
Wavelength (nm) |
Optical Port |
Electric Port |
Optical Power (dBm) |
Receiving Sensitivity (dBm) |
Transmission Range (km) |
FOCC-DME281-05 |
850nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -19 |
0.55km |
FOCC-DME231-2 |
1310nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -20 |
2 km |
FOCC-DSE231-10 |
1310 nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -24 |
10 km |
FOCC-DSE231-20 |
1310 nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -24 |
20 km |
FOCC-DSE231-40 |
1310 nm |
SC |
RJ - 45 |
-5 ~ 0 |
≤ -24 |
40 km |
FOCC-DSE251-60 |
1550 nm |
SC |
RJ - 45 |
-5 ~ 0 |
≤ -24 |
60 km |
Desk Type Single - Optical Two - Way Media Converter |
||||||
Part No. |
Wavelength (nm) |
Optical Port |
Electric Port |
Optical Power (dBm) |
Receiving Sensitivity (dBm) |
Transmission Range (km) |
FOCC- SSE231-10 |
1310nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -24 |
10 km |
FOCC- SSE251-10 |
1310nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -24 |
10 km |
FOCC-SSE231-20 |
1310 nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -24 |
20 km |
FOCC-SSE251-20 |
1310 nm |
SC |
RJ - 45 |
-8 ~ -3 |
≤ -24 |
20 km |
FOCC-SSE231-40 |
1310 nm |
SC |
RJ - 45 |
-5 ~ 0 |
≤ -24 |
40 km |
FOCC- SSE251-40 |
1550 nm |
SC |
RJ - 45 |
-5 ~ 0 |
≤ -24 |
40 km |
Bulk For Packed
Shipping Method As Follow or Customized Requirements
Quality Assurance
MTBF > 65,000 hours;
Replacement within one year and non-charge repair within three years guaranteed.
Notes:
Prices and specifications are subject to change without notice, FOCC is not responsible for typographical or photographic errors. For detailed inquiry please contact our sales team at focc@fiberfocc.com.
