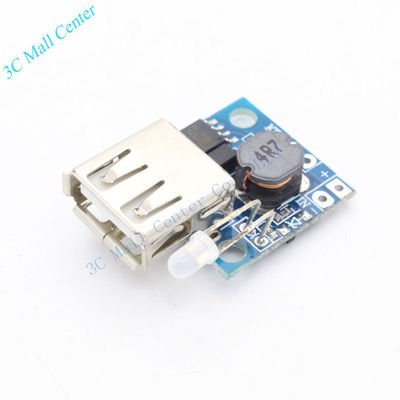

DC-DC 2.6V-5.5V to 5V Step Up Step-up Boost Module Ajustable Power Converter

DC-DC 2.6V-5.5V to 5V Step Up Step-up Boost Module Ajustable Power Converter

DC-DC 2.6V-5.5V to 5V Step Up Step-up Boost Module Ajustable Power Converter

Thông tin chi tiết sản phẩm:

Place of Origin: guangdong
Hàng hiệu: DEWANG
Chứng nhận: CE
Model Number: Z0260

Thanh toán:

Minimum Order Quantity: 50 pcs
Giá bán: $1.92
Packaging Details: 1 x DC-DC Boost Module
Supply Ability: 3,0000 pcs per month
Liên hệ với bây giờ
Chi tiết sản phẩm

DC-DC 2.6V5.5V to 5V Boost Module Ajustable Power Converter

Description:

Input voltage :2.6-5 .5 V

Output voltage: 5V

Input current :0-3A

Output current :0-2A

Operating temperature: -40 to +85 degrees

Working frequency: 1.2MHz

Conversion efficiency: up to 93% (the efficiency of the input and output voltage, current, differential pressure related)

Over current protection: Yes

Over temperature protection: Yes (over temperature shutdown automatically output)

Input reverse polarity protection: No (if required in the input string into the diode)

Battery indicator lights up red: 3.6V

Identify resistance: Tablet PC, ipad, iphone

Installation: 2pcs of 3mm screws

Connection mode: welded, V-IN input, USB output,

Module size: 20 x 20 x 6.8mm

Applications:
This module can be applied in a single lithium battery or 5V-12V output charging for general digital products, such as mobile phones, Ipad, MP3, PSP. Itself with the charging circuit and the battery indicator circuit, only used to connect the battery can become a high-current output mobile power. Can also set the output voltage of 5-12V supply

Package Included:

1 x DC-DC Boost Module
