High Efficiency Wind And Solar Power Systems 48V DC Power Supply

High Efficiency Wind And Solar Power Systems 48V DC Power Supply

  • High Efficiency Wind And Solar Power Systems 48V DC Power Supply
High Efficiency Wind And Solar Power Systems 48V DC Power Supply
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: TYPMAR
Chứng nhận: CE, ISO9001, IEC61400
Model Number: CXF-600W
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/ month
Tiếp xúc
Chi tiết sản phẩm
Model Number: CXF-600W Swept Area: 1.36m2
Unique: TYPMAR patented Solar panel: 2000W
Voltage: 48W Wind turbine: 600W
Application: BTS or Telecome Station Working Hours: 24 hours
Điểm nổi bật:

wind solar hybrid power system

,

wind turbine solar panels hybrid system

High Efficiency Wind And Solar Power Systems 48V DC Power Supply





1. Wind solar power system Configuration is customerized

2. High attention attract
3. No pollution, low carbon, green life
4. After the installation of green power, power is free

5. Savonius Turbine and Darrieus Turbine are combined, perfect work in breeze and strong wind
6. Start up at 1.0 m/s, cut in wind speed 2.5 m/s

Description

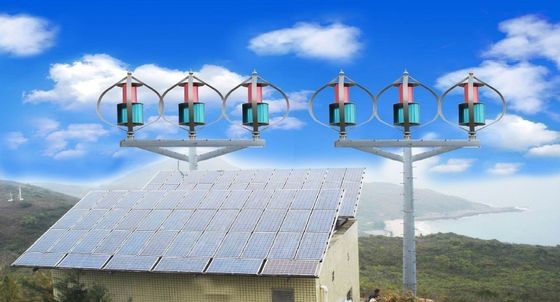

TYPMAR maglev wind turbine have 6 models, 200W, 300W, 400W and 600W, 1KW, 3KW are for hybrid street lighting, home use, telecom station or any place need independent power. For the wind and solar power system for advertising lighting, we can choose 300W and 600W wind turbine, the image configuration as below:



600W wind turbine   6 sets

Solar panel  100W    84 pcs

Hybrid controller      6 pcs



Installation:
• Easy Installation: System can be assembled within one hour
• No welding
• Single or multiple unit connection for bigger power production
• Easy connection with PV systems

Environment:
​• Zero emission
• Synergy with Solar and Geothermal systems
• Dual colors make it easy for bird identification in order to prevent collisions (Animal-friendly)

Design:
• Gearless design: no need to replace worn-out or broken gear
• Brushless: motor brushes making high failure items results in regular replacements
• Bearing-free design: no need to lubricate or to replace worn-out bearings
• Magnetic levitation design: reduces rotational resistance to enhance power generation as well as prolong the turbine life.
• No yaw or furling mechanism required: allows for peak power output at any wind speed
• No cogging torque for cutting-in at low wind speed
• Direct-drive: Extends product life
• Blades can start rotating at very low wind velocity of 2.2 mph (1 m/s)
• Space-saving, aerodynamic airframe
• Heavy duty and industrial level construction
 Wind Solar Hybrid Street Light System With Doulbe LED Lamps

Control:
• Intelligent control system has automatic protective functions to lower rotational speed in case of so strong wind as hurricane
• Real-time remote monitoring system can monitor and acquire data and equipment performance

Application

The wind solar power system for advertising usually is far away from city, and city power is not available. Green power is the ideal power to lighting up your brand in the dark.




Specification


Rated power

Approx. 600Wh at 13 m/s (26 mph)

Swept Area

1.36m2

Height / Diameter

1.47/1.70 m

Weight

50 kg

Shipping Dimensions

1560 x 680 x 660 mm  65 kg

Startup Wind Speed

1 m/s (2.6 mph)

Voltage

48 and 24 V DC

Turbine Controller

Smart Wind $ solar hybrid controller

Body

Permanent mold cast aluminum

Blades

(7) Injection-molded aluminum

Alternator

Permanent maglev generator

Overspeed Protection

3 phases short-circuit braking control

Survival Wind Speed

65m/s

Mount

Inner diameter 80MM 140mm outer diameter

Wind Speed Operating Range

1-15 m/s (8-49 mph)

Optimum Wind Speed Range (RPM)

8-10 m/s ( 750-800RPM)



Why to choose TYPMAR  wind turbine ?

The CXF series of maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple subjects to have the following features:

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
