Place of Origin: | China |
Hàng hiệu: | KRIPAL |
Chứng nhận: | CE |
Model Number: | UKS-B1341-6 |
Minimum Order Quantity: | 500pcs |
---|---|
Giá bán: | negotiable |
Packaging Details: | Each unit packed in a individual box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000 pcs per month |
Purpose: | Industrial | Ampere: | 16A |
---|---|---|---|
Voltage: | 110V | Protection grade: | IP44 |
Plastic materials: | Nylon, Rubbber, PC, Copper | Color: | Orange |
Điểm nổi bật: | Industrial Electrical Outlets,32 Amp Industrial Socket |

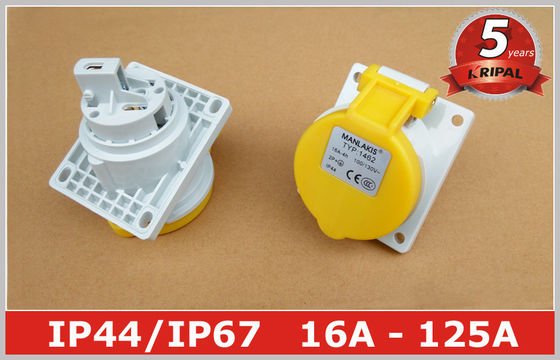

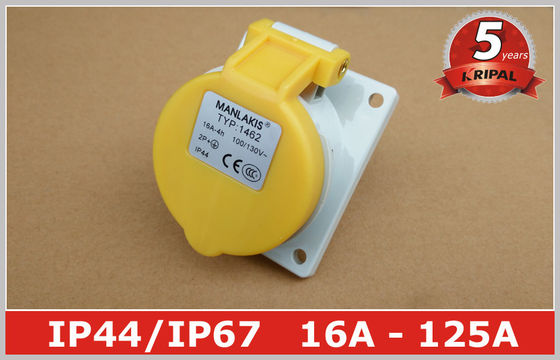

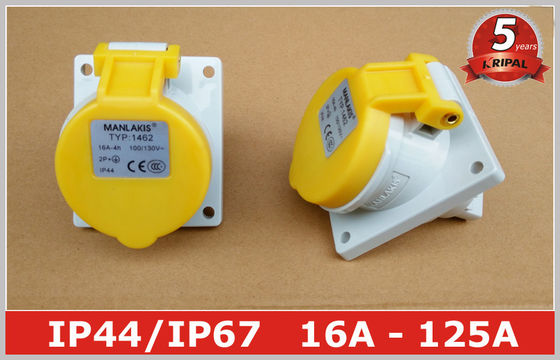

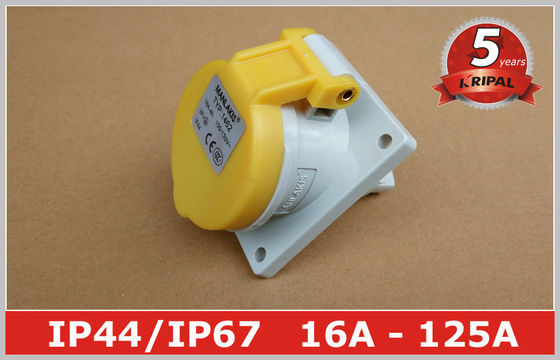

Angled Panel Mounted Industrial Power Socket switch 110V 16A IP44 3 Pin For Marine
Industrial Panel Mounted Sockets are supplied with a spring return cover which will latch with a mating plug for secure connection ensuring optimum safety at all times.
IP44 / IP67 Range is ideal for use in factories and Power Station’s, TV and film studios, football stadiums, railways including both underground and overground, aviation, quarries, and marine / offshore.
Technical Data:
Protection: IP44
Current: 16A
Pins: 2P+E
voltage: 110V
Flange size: 73.5MM*64MM
Type: 20 degree inward slopping
Perfect performance
All Plugs and Sockets in our range comply with high standards of quality meeting different required tasks. Some have advanced features while others have a straight forward functionality.
Perfect for demanding customers.
Perfect productivity
The result is that you can rely on all our Plugs and Sockets to help you maintain a high up-time in your operations. No unscheduled or unwanted interruptions, allowing you a high degree of flexibility.
Perfect safety
Safety is also very important. By choosing KRIPAL industrial plug socket you minimize the risk of short circuits. You also ensure maximum personal safety for anyone nearby or around your equipment.
Specifications:
Product | Industrial panel mounted socket |
Rated current | 16A,32A,63A,125A |
No. of poles | 2P+E, 3P+E 3P+N+E |
Voltage | 220V-250V; 380V-4150V |
Protection degree | IP67 |
Power type | Single Phase, Three Phase |
Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A),6-25(125A) |
Material | NYLON PA6, PC, copper |
Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Protection | IP44/IP67 |
Current | 16A, 32A, 63A, 125A, 250A, 420A |
Pins | 2P+E, 3P+E, 3P+N+E |
Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 400V-690V |
PLUG & SOCKET | Low voltage plug socket <50V |
Industrial plug, industrial socket | |
Wall mounted socket, wall mounted plug | |
Panel mounted socket, panel mounted plug | |
Interlocked switched socket | |
BOX | Industrial portable socket box |
Industrial plastic socket box | |
Power maintenance box (stainless) | |
Power maintenance box (plastic) | |
Industrial lighting box (plastic) | |
Industrial lighting box (metal) | |
Distribution box for exhibition box | |
T. V / Film power distribution box | |
Distribution box with power and compress air outlet | |
Accessories | Cap for 16A, 32A, 63A, 125A plug |
WHY CHOOSE KRIPAL ELECTRIC?
Long history: We founded in 1987, more than 25 years specialized in electric system.
Certification: We have passed ISO9001:2000, ROHS, CE, CB, Semko, TUV, SAA, UL, KEMA...
Quality Control: we make quality control for each item separately and have serious quality control system to make our brand go further.
Fast Service: your inquiries / comments / feedbacks will be replied within 48 hours
