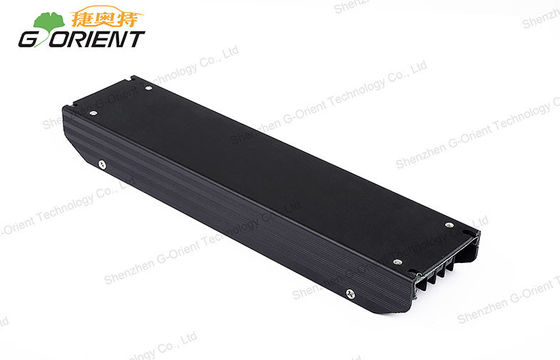

Advisement Player High Power Switching Power Supply 4.2V 60A Output

Advisement Player High Power Switching Power Supply 4.2V 60A Output

  • Advisement Player High Power Switching Power Supply 4.2V 60A Output
Advisement Player High Power Switching Power Supply 4.2V 60A Output
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: G-ORIENT
Chứng nhận: ISO9001 / CE / ROHS / FCC
Model Number: NHP300-4.2-A
Thanh toán:
Minimum Order Quantity: 10pcs
Giá bán: negotiable
Packaging Details: 20pcs/20Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Tiếp xúc
Chi tiết sản phẩm
Operating temperature: -30℃ ~ +60℃ Standard: CE / ROHS / FCC
Output: 4.2V DC / 60A Output power: 252W
Input: 100-240V AC Power factor: >0.95
Điểm nổi bật:

switching power supply

,

single output switching power supply


Advisement Player High Power Switching Power Supply 4.2V 60A Output


Applications:

1. Electrical equipment, Instrumentation;

2. Digital and electronic products;

3. Advisement player

4. LED display,LCD TV, LED TV

5. Display screen,LED video wall

6. Communications and security products.



Specifications:

Switching power supply

 NHP300-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 252W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 242*58*29mm (L*W*H)

Packing





Features:

* Synchronous rectification,high power factor>0.95

* High efficiency up to 90%

* Low output ripple and noise,high reliability

* With over-current/over-voltage/short-circuit/over-power protection

* Ultra-low start up temperature -40℃

* 2 years warranty




Competitive Advantage:

* Ultra-thin 29mm

* High efficiency up to 90%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* Synchronous rectification+PFC

* Ultra-low start up temperature-40℃

* CE / ROHS / FCC approval
