| Place of Origin: | China |
| Hàng hiệu: | G-ORIENT |
| Chứng nhận: | ISO9001 / CE / ROHS / FCC |
| Model Number: | NID150-4.2-A |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Giá bán: | negotiable |
| Packaging Details: | 20pcs/12Kgs / CARTONS |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, Paypal, L/C, Western Union |
| Supply Ability: | 50,000pcs per month |
| Size: | 152*100*18mm | Input: | 36-72vdc |
|---|---|---|---|
| Output: | 4.2V DC / 30A | Output power: | 126W |
| High efficiency: | 91% | Application: | On-board screen, Taxi LED sign |
| Điểm nổi bật: | switching power supply,single output switching power supply |
||

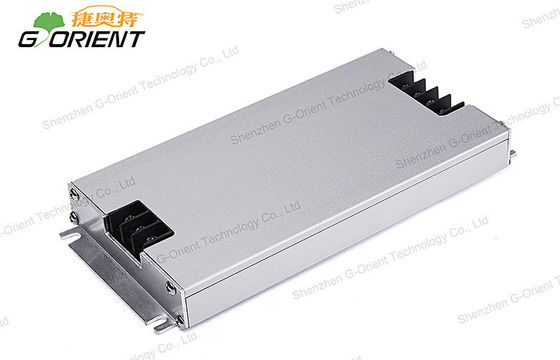

126W 4.2V 30A Switch Power Supply with Aluminum metal shell 2 Years Warranty
Features:
* Input reverse connect protection
* High efficiency 91% & small size
* Low output ripple and noise
* Aluminum metal shell,natural cooling
* Through the EMC certification
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design
Specifications:
|
Switching power supply |
NID150-4.2-A |
|
|
OUTPUT |
DC Voltage |
4.2V |
|
Current Range |
0~30A |
|
|
Rated Current |
30A |
|
|
Rated Power |
126W |
|
|
Ripple & Noise(max.) |
<100mVp-p |
|
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
|
Over-current protection |
>120%io,hiccup |
|
|
Line Regulation |
0.2%Vo max |
|
|
Load Regulation |
0.2%Vo max |
|
|
Short-circuit protection |
Hiccup |
|
|
Hold up time |
>8mS |
|
|
Overshoot and undershoot |
< +/- 5.0% |
|
|
INPUT |
Voltage Range |
DC36-72V |
|
Frequency Range |
BW=20MHz |
|
|
Efficiency(Typ.) |
91% |
|
|
DC Current |
<2.9A |
|
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
|
Environment |
MIBF |
>2 million hrs |
|
Temp.Coefficient |
< 0.02%/℃ |
|
|
Storage Temperature range |
-55 ~ +115℃ |
|
|
Operaing board Temperature range |
-30 ~ +75℃ |
|
|
Safety |
Safety standards |
CE |
|
Withstand Voltage |
DC40V |
|
|
Others |
Dimension |
152*80*18mm (L*W*H) |
|
Packing |
0.6kg; 20pcs/12Kgs |
|
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Competitive Advantage:
* Isolated power supply
* Ultra-thin 18mm
* High efficiency up to 91%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* CE / ROHS / FCC approval
