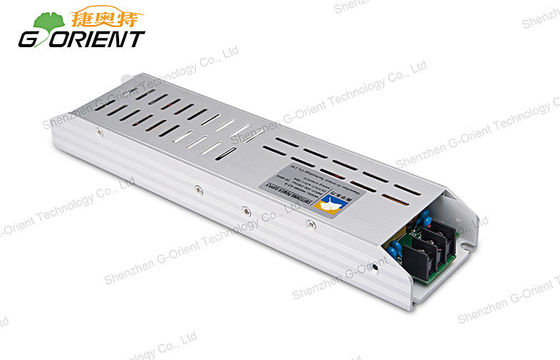

LED Microdist TV Switch Power Supply in DC 4.5V 40A Constant Voltage 180W

LED Microdist TV Switch Power Supply in DC 4.5V 40A Constant Voltage 180W

  • LED Microdist TV Switch Power Supply in DC 4.5V 40A Constant Voltage 180W
LED Microdist TV Switch Power Supply in DC 4.5V 40A Constant Voltage 180W
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: G-ORIENT
Chứng nhận: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-4.5-A
Thanh toán:
Minimum Order Quantity: 10pcs
Giá bán: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Tiếp xúc
Chi tiết sản phẩm
Product Name: LED TV power supply Input: 100-240V AC
Output: 4.5V DC / 40A Size: 212*58*29mm
High efficiency: 90% Power factor: >0.95
Standard: CE / ROHS / FCC Case material: Metal, aluminium
Điểm nổi bật:

high power switching power supply

,

switching power supply





LED Microdist TV Switch Power Supply in DC 4.5V 40A Constant Voltage 180W





Features:

* Synchronous rectification,high power factor>0.95

* High efficiency up to 90%

* Low output ripple and noise,high reliability

* With over-current/over-voltage/short-circuit/over-power protection

* Ultra-low start up temperature -40℃

* 2 years warranty





Specifications:

Switching power supply

 NHP200-4.5-A

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 180W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing









Competitive Advantage:

* Ultra-thin 29mm

* High efficiency up to 90%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* Synchronous rectification+PFC

* Ultra-low start up temperature-40℃

* CE / ROHS / FCC approval





Company Advantage:

* Cheap wholesale price

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process

* Best after sale service





Applications:

1. Electrical equipment, Instrumentation;

2. Digital and electronic products;

3. Advisement player

4. LED display,LCD TV, LED TV

5. Display screen,LED video wall

6. Communications and security products.
