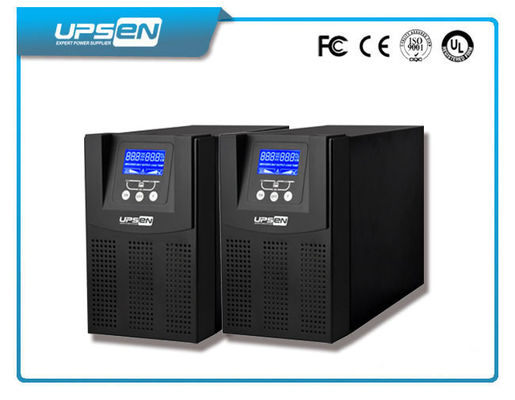

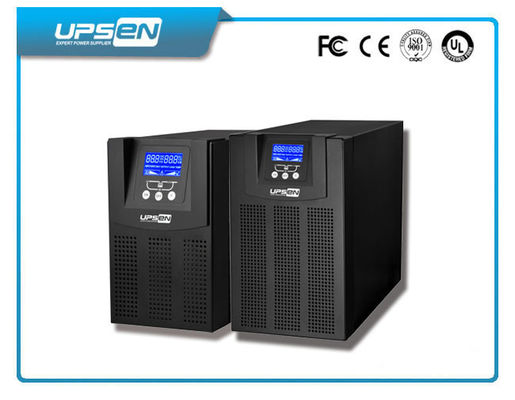

Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232

Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232

    • Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232
    • Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232
  • Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232

    Thông tin chi tiết sản phẩm:

    Place of Origin: China
    Hàng hiệu: UPSEN
    Chứng nhận: CE, ISO, RoHS
    Model Number: Queen Star Series 1-3Kva

    Thanh toán:

    Minimum Order Quantity: 5pcs
    Giá bán: Negotiation
    Packaging Details: Cartons & Wooden Pallet
    Delivery Time: 7-15 Days
    Payment Terms: T/T, LC, WU, Money Gram etc
    Supply Ability: 50,000pcs/Month
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Type: Online Output Power Factor: 0.8
    Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit etc
    Display: Digital LCD Display H.S. Code: 8504402000
    :

    true online double conversion ups

    ,

    commercial ups systems



    Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232

    Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)



    Quick Read

    1: Online UPS with large LCD Screen and LED Display for UPS status

    2: UPS with auto DC restart function when AC Power Off

    3: UPS with RJ11, RJ45, RS232, USB and SNMP Ports

    4: UPS with SNMP Card to remotely manage and monitor UPS

    5: UPS with IGBT and MCU Tech





    Key Features:



    DSP Technology: The advanced DSP digital control technology enable UPS more stable performance.



    Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.



    Active input power factor correction (PFC): Digitalized control of the PFC enable the UPS to keep input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.



    Widened range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to various environment, which will effectively sustain the battery charging even in unstable power environment so that the service life of the UPS could be obviously prolonged.



    Zero power switch delay: When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which will ensures stable power supply of operating system.



    Adaptive Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitors power usage and automatically sheds and reconnects loads in order to prevent generator overload.



    Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.



    The load power factor is 0.8: it adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.



    Support the Generators: The wide range of input voltage and frequency can effectively separate the harmful electric wave produces by the generators and provide safe and reliable power supply.



    Large-screen LCD



    Technical Specification

    MODEL Q1K Q1KL Q2K Q2KL Q3K Q3KL
    Rated capacity  1KVA/800W 2KVA/1600W 3KVA/2400W
    Input Voltage 115 - 300Vac
      Frequency 40-60Hz / 50-70Hz
    Power factor 0.99
    Output Voltage  220/230Vac(1±2%)
      Frequency

    Synchronize with utility power(utility mode);

    50 / 60Hz ± 0.2Hz(battery mode)

    On-load factor 0.8
    Overload rating   125% overload,1min
    Battery Type  Valve-control lead acid maintenance-free battery
    Back up time

    > 11min

    (half load)

    External

    > 11min

    (half load)

    External

    > 11min

    (half load)

    External
    Rated voltage  36V 72V 96V
    Transfer time 0
    Operating environment Humidity: 20%-90%, Temperature:0oC-40oC
    Size (WxDxH)mm 350 x 144 x 229 424 x 190 x 328 424 x 190 x 328
    Net Weight(kg) 11.5 5.7 22.2 10 26.3 10





    Competitive Advantages:


    1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
    3: Good after-sales service, we will be full responsible for any faults caused by our side
    4: Professional experience in power field more than 10 years
    5: Professional technical support before and after sales

    6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.                                 7: Free OEM & ODM Service

    8: Competitive price, quality and mature products





    Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232 0Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232 1Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232 2
