Place of Origin: | China |
Hàng hiệu: | G-ORIENT |
Chứng nhận: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHD-200-5E |
Minimum Order Quantity: | 10pcs |
---|---|
Giá bán: | negotiable |
Packaging Details: | 20pcs/12Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, Western Union, L/C |
Supply Ability: | 50,000pcs per month |
Size: | 168*80*18mm | Input: | 9-36V DC |
---|---|---|---|
Application: | On-board screen, Taxi LED sign | Case material: | Metal, aluminium |
Output: | 5V 40A | Output Powerr: | 200W |
High efficiency: | 94% | Operating temperature: | -40℃ ~ +70℃ |
Điểm nổi bật: | led power supplies,adjustable power supply |

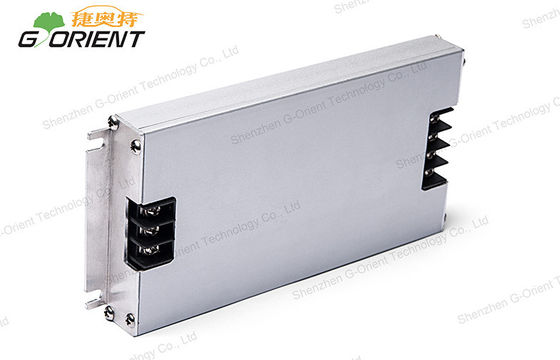

Metal Single Output Switching Power Supply for Taxi Roof LED Sign
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Company Advantage:
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM,any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area,ideas of design and all your private information
5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Features:
* Low output ripple and noise
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Aluminum metal shell,natural cooling
* Through the EMC certification
* 2 years warranty
* Input reverse connect protection
* High efficiency 94% & small size
Specifications:
Switching power supply |
NHD-200-5E |
|
OUTPUT |
DC Voltage |
5V |
Current Range |
0~40A |
|
Rated Current |
40A |
|
Rated Power |
200W |
|
Ripple & Noise(max.) |
<200mVp-p |
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
Over-current protection |
>120%io,hiccup |
|
Line Regulation |
0.2%Vo max |
|
Load Regulation |
0.2%Vo max |
|
Short-circuit protection |
Hiccup |
|
Hold up time |
>8mS |
|
Overshoot and undershoot |
< +/- 5.0% |
|
INPUT |
Voltage Range |
DC9-36V |
Frequency Range |
BW=20MHz |
|
Efficiency(Typ.) |
94% |
|
DC Current |
<25A |
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
Environment |
MIBF |
>2 million hrs |
Temp.Coefficient |
< 0.02%/℃ |
|
Storage Temperature range |
-55 ~ +115℃ |
|
Operaing board Temperature range |
-25 ~ +65℃ |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
DC40V |
|
Others |
Dimension |
152*100*18mm (L*W*H) |
Packing |
0.6kg; 20pcs/12Kgs |
|
Note |
|
|
|
Competitive Advantage:
* CE / ROHS / FCC approval* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* High efficiency up to 94%
* The two level output over voltage protection
