Place of Origin: | China |
Hàng hiệu: | G-ORIENT |
Chứng nhận: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHD100-4.2-A |
Minimum Order Quantity: | 10pcs |
---|---|
Giá bán: | negotiable |
Packaging Details: | 20pcs/12Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Application: | On-board screen, Taxi LED sign | Input: | 9-36V DC |
---|---|---|---|
Operating temperature: | -40℃ ~ +60℃ | Standard: | CE / ROHS / FCC |
Output power: | 100W | Output: | 5V DC / 20A |
High efficiency: | 94% | Size: | 120*80*18mm |
Điểm nổi bật: | adjustable switching power supply,switched mode power supply |

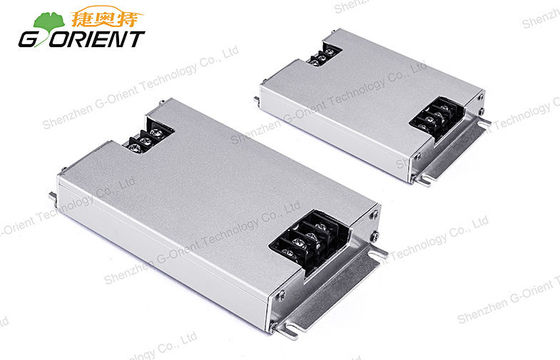

2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W
Competitive Advantage:
* CE / ROHS / FCC approval
* Low output ripple and noise
* Ultra-thin 18mm
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* High efficiency up to 94%
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Specifications:
Switching power supply | NHD100-4.2-A | |
OUTPUT | DC Voltage | 4.2V |
Current Range | 0~20A | |
Rated Current | 20A | |
Rated Power | 84W | |
Ripple & Noise(max.) | <100mVp-p | |
Voltage set point accuracy | +/- 3.0%Vo max | |
Over-current protection | >120%io,hiccup | |
Line Regulation | 0.2%Vo max | |
Load Regulation | 0.2%Vo max | |
Short-circuit protection | Hiccup | |
Hold up time | >8mS | |
Overshoot and undershoot | < +/- 5.0% | |
INPUT | Voltage Range | DC9-36V |
Frequency Range | BW=20MHz | |
Efficiency(Typ.) | 94% | |
DC Current | <25A | |
Inrush Current(Typ.) | 100A at DC Cold start | |
Leakage Current | Input-Output< 0.2mA ; Input-PG:<0.3mA | |
Environment | MIBF | >2 million hrs |
Temp.Coefficient | < 0.02%/℃ | |
Storage Temperature range | -55 ~ +115℃ | |
Operaing board Temperature range | -25 ~ +65℃ | |
Safety | Safety standards | CE |
Withstand Voltage | DC20V | |
Others | Dimension | 120*80*18mm (L*W*H) |
Packing | 0.6kg; 20pcs/12Kgs |
Features:
* Low output ripple and noise
* High efficiency 94% & small size
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Through the EMC certification
* Input reverse connect protection
* Aluminum metal shell,natural cooling
Company Advantage:
1. OEM&ODM,any your customized lightings we can help you to design and put into product
2. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area,ideas of design and all your private information
5. Your inquiry related to our products or price will be replied in 24hrs
.
