Công viên Gaoxin công nghiệp, Guangming New Zone, thành phố Thâm Quyến, tỉnh Quảng Đông, Trung Quốc | Angelwang66@126.com |
Place of Origin: | China |
Hàng hiệu: | G-ORIENT |
Chứng nhận: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHP200-4.2-A |
Minimum Order Quantity: | 10pcs |
---|---|
Giá bán: | negotiable |
Packaging Details: | 20pcs/16Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
High efficiency: | 90% | Application: | LED TV |
---|---|---|---|
Output power: | 168W | Output: | 4.2V DC / 40A |
Input: | 100-240V AC | Power factor: | >0.95 |
Case material: | Metal, aluminium | IP Grade: | IP20 |
Điểm nổi bật: | universal power supply,high voltage power supply |

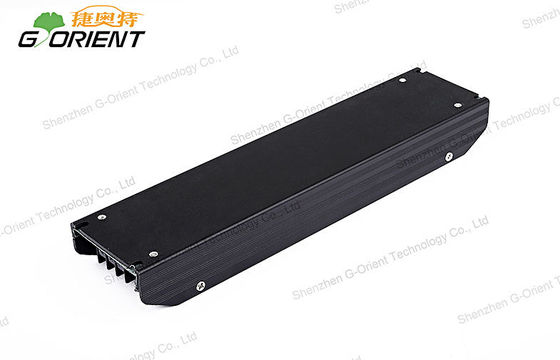

Output 4.2V 40A 168W AC / DC Switching Power Supply Natural convection Cooling
Applications:
* Electrical equipment, Instrumentation;
* Digital and electronic products;
* Advisement player
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Communications and security products.
Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty
Specifications:
Switching power supply | NHP200-4.2-A | |
OUTPUT | DC Voltage | 4.2V |
Current Range | 0~40A | |
Rated Current | 40A | |
Rated Power | 168W | |
Ripple & Noise(max.) | <250mVp-p | |
Regulation | ≦+/-3% | |
Leakage current | ≦3.5mA | |
INPUT | Voltage Range | 100-240V AC |
Frequency Range | 47-63Hz | |
Efficiency(Typ.) | 90% | |
Environment | Storage Temperature | -40 ~ +85℃ |
Operaing Temperature | -40 ~ +80℃ | |
Relative Humidity | 10%-95% | |
Cooling | Natural convection | |
Safety | Safety standards | CE |
Withstand Voltage | Input-output withstand vol. | 3000Vac/10mA/1min |
Input-FG withstand vol. | 1500Vac/10mA/1min | |
Output-FG withstand vol. | 500Vac/10mA/1min | |
Others | Dimension | 212*58*29mm (L*W*H) |
Packing |
| |
Note |
| |
|
Competitive Advantage:
* Ultra-thin 30mm
* Ultra-low start up temp.(- 30℃)
* synchonous rectification
* High efficiency up to 85%
* CE / ROHS / FCC approval
* Small size,ultra-light and easy to install
* Protections:Short circuit / Overload / Over voltage / Over temperature
Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
