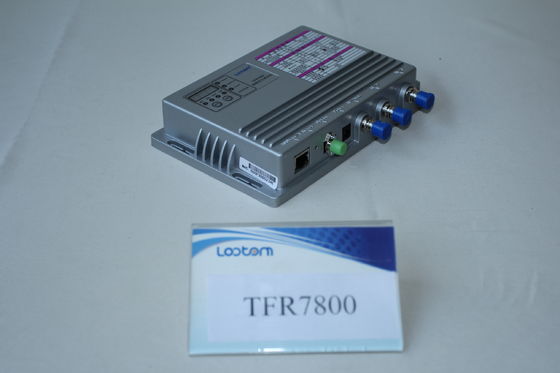

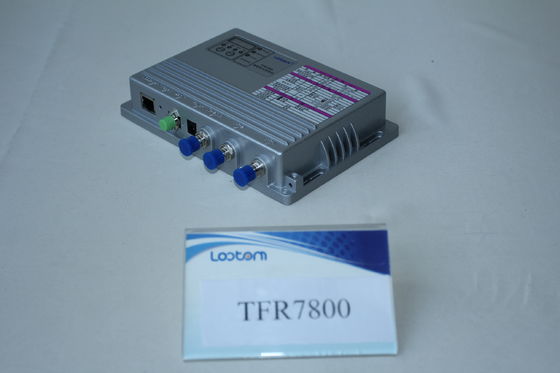

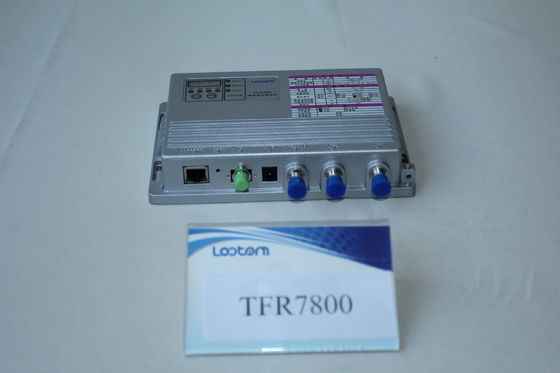

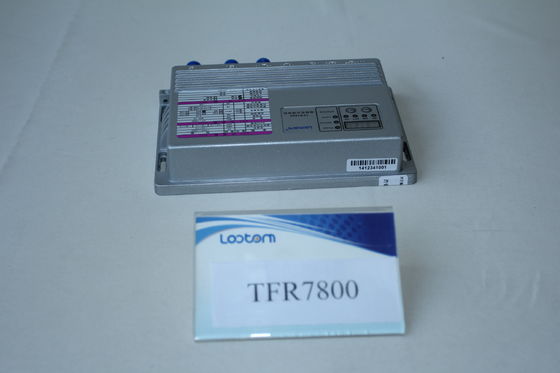

Low Power SNMP AGC FTTB Optical Receiver TFR7800

Low Power SNMP AGC FTTB Optical Receiver TFR7800

  • Low Power SNMP AGC FTTB Optical Receiver TFR7800
  • Low Power SNMP AGC FTTB Optical Receiver TFR7800
  • Low Power SNMP AGC FTTB Optical Receiver TFR7800
  • Low Power SNMP AGC FTTB Optical Receiver TFR7800
Low Power SNMP AGC FTTB Optical Receiver TFR7800
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: LOOTOM
Chứng nhận: CE,ROHS
Model Number: TFR7800
Thanh toán:
Minimum Order Quantity: 1pcs
Giá bán: USD 50.00
Packaging Details: carton
Delivery Time: 5-10 days
Payment Terms: L/C,T/T,PAYPAL
Supply Ability: 50 Piece/Pieces per Month
Tiếp xúc
Chi tiết sản phẩm
Bandwidth: 47~1000BMHz Input Power: -9~+3dBm
AGC Range: -8~+2dBm Output Ports: 1~2
Output Level: 106dBuV SNMP: Optional
Điểm nổi bật:

hybrid fiber coax network

,

hybrid fibre coaxial


One - Way Optical Receiver HFC Terminal Optical Devices , TFR7800 Building Optical Receiver


Overview

TFR7800 building optical receiver is indoor rainproof one-way optical receiver with two ports, can be used in the CATV network, digital network and telecom network . Especially in fiber to building, its out ports cover the CATV network with small volume and many function. Adopting high-quality high-frequency detector.RF is amplified by low power consumption, high-liner GaAs amplifier chip.

TFR7800 building optical receiver ‘s receiving optical power range is -9 ~ +3DBM. AGC range is  -8 ~-+2 DBM, optical output level of each RF out port reaches 102 dbuv. When optical receiving power is - 6 DBM, C/N is larger than 46 db and MER is more than 35 db. Besides users can choose high out configuration. Within the AGC range of -6—+2dBm, output of single port can up to 110dBm.


There is a external thigh-quality switch power adapter with 3C certification to convert AC220V or AC60V  to DC supplying power for the optical receiver.Displaying optical power and level. Balance and damping control are adjustable. Users can choose NM transponder meeting national NM standard. It supports remote control of balance and damping and minoring of out level.

Features

  •  Working bandwidth:47-1000MHZ
  •  Meeting SNMP NM standard and supporting remote and local setting and management of the receiver.
  •  Perfect surge suppression circuitry, improved the  anti-lightning strike and the prevention of lightning surge shocks
  •  AGC range:-8~+2dBm or -6~+2dBm, receiving optical power range :-9~+3dBm
  •  Input stage adopt imported low-noise GaAs amplifier, output stage adopt imported  CATV high-pertableance, high reliability GaAs power multiplier module,greatly improved the C/N and non-linear distortion characteristics while significantly reducing the power consumption
  •  Rigorous reliability test,MTBF >100,000 hours
  •  Photo detector:high-quality device which responsiveness is greater than 0.9A/W
  •  Supporting a real-time display of OP,RF,ATT,EQ and working status and setting of ATT and EQ.
  •  There is a external thigh-quality switch power adapter with 3C certification.

 Low Power SNMP AGC FTTB Optical Receiver TFR7800 0
Diagram





Technical parameters

Optical

Optical Wavelength

nm

1310~1550



Optical Connector Type



FC/APC or SC/APC



Received Optical Power Range

dBm

-9~+3



Optical AGC Control Range

dBm

-8~+2

High output:-6—+2

RF

Frequency Range

MHz

47~1000



Flatness

dB

±0.75



RF Ports



1~2

Branch/Distribution

Optional

Nominal Output Level(received optical power is +1~-6dBm)

dBuV

102

dual output port

Test port

dB

-20±1



RF Output Impedance

Ω

75

1dB step

 Gain Adjustment Range

dB

0~12

3dB step

Slope Adjustment Range *

dB

0~12

3dB step

Output Return Loss

dB

≥16(47-550MHz)
≥14(>550MHz)



equivalent input noise current

PA /Low Power SNMP AGC FTTB Optical Receiver TFR7800 1

≤8



Link Index

C/N

dB

>47

Optical receive

power -3dBm,

Single-port

level 104dBuV

flat output;

CTB

dBc

>65

CSO

dBc

>66

General

Dimension

mm

185×118×36



Input Voltage

Vac

160-220



Output voltage

V

12



Power Consumption

VA

<7



Operating Temperature

-25~+65



Storage Temperature

-40~+80

Non-condensation

Weight

Kg

0.5
