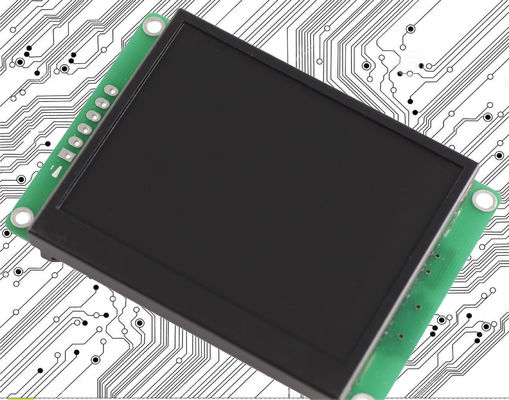

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface
Please note: The Main controller can be designed by engineer with Any MCU.
Software Description
2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly, plug
and play.
3. Write a simple program for the MCU to control the TFT-LCD Module via powerful "Command Sets"
(HEX Code).
That's all. Saving much development Time and Cost for Engineer.
For example: Image Command 0x70.
Send: “0xAA+0x70+ Pic_ID + 0xCC 0x33 0xC3 0x3C”
|
Introduction |
Example |
Note |
AA |
Frame head |
|
Frame head of one Command |
0x70 |
Command Code |
|
|
Pic_ID |
Sequence number of the current picture |
0x00 0x01 |
Show Picture - 01 |
CC 33 C3 3C |
Frame end |
|
Frame end of one Command |
We would offer a simple Toolbox to help you to work with TFT-LCD Module on PC.
1. Assistant function: show how to send the Command Set to control the TFT display.
2. Download function: Download the images and configuration files into TFT Module
3. Touch Control function: Define many buttons on the User Interface, then create a touch configuration
file.
4. Font software: Create the font configuration file.
Product Parameter
Model: STA151WT-01 (Advanced Type)
Physical Parameter |
|
Model |
STA151WT-01 |
Size (Inch) |
15.1" |
Resolution |
1024×RGB×768 |
Pixel Spacing |
0.1905 mm × 0.0635 mm(H×V) |
Color |
65536 colors (16 bit) |
Viewing Area |
304.1 mm × 228.1 mm |
Overall Dimension |
384.5 mm × 255.9 mm × 26 mm(N)/ 28.3 mm(T) |
Net Weight |
1255 g(N)/ 1635 g(T) |
TFT Panel |
A+ Level Industry Panel |
Touch Screen |
Industry Level 4 wire resistance Or without touch screen is optional. |
Backlight Parameter |
|
Backlight Type |
LED |
Brightness |
500 cd/m2 (Brightness can be adjustable in 100 levels.) |
Contrast |
500:1 |
Backlight life |
50,000 hours |
Viewing Angle |
80°/ 80°/ 80°/ 80° (L/R/U/D) |
Working Temperature |
-20°C ~ +70°C |
Working Humidity |
55°C, 85% |
Storage Temperature |
-30°C ~ +80°C |
Screen Mode |
Digital |
Performance Parameter |
|
CPU |
CortexM3 STM32F103 |
LCD Controller |
CPLD EPM240 |
Refresh Rate |
60Hz |
Picture Switching Speed |
80 ms/picture (12 pictures/s) |
Flash Memory |
Standard 256m, Extension 2GB |
Memory Amount for picture |
151 images |
Interface |
RS232/ RS485/ TTL UART Interface |
Pictures downloading |
MiniUSB2.0 (12Mbps) & SD card |
Voltage Range |
DC5.0V ~ 20V (typical value: 12V) |
Power |
12W |
Test Report |
|
MTBF |
4,250,000H |
Working Temperature |
-20°C ~ +70°C |
Air Humidity |
60°C, 90% |
Continuous Vibration Testing |
10-55Hz, 1.5mm, 10G |
Impact Acceleration Testing |
6ms, 100G |
ESD Testing |
10KV |
Radiation Reliability Testing |
44W |
Advantages
With CPU & Driving Device |
Controlled by Any MCU |
Display Picture/ Text/ Curve via Commands |
65536 colour TFT display |
Touch Screen |
RS232/ RS485/ TTL UART Interface & USB port |
Wide voltage range |
Widely Used in many various Industrial Field |
Easy to Use! Powerful Function! Saving Cost and Time! |
Used as Touch-controller, TFT-LCD display system, etc. |
Easy!!! Powerful!!! Saving!!!
The Intelligent TFT-LCD Module can be controlled by Any MCU through our Powerful & Easy Command
Set (HEX Code), So
many of engineer in more than 50 countries enjoy our Product for new project.
Size |
Resolution |
3.5" |
320*240 |
4.3" |
480*272 |
5" |
640*480; 480*272; 800*480 |
5.6" |
640*480 |
5.7" |
640*480 |
7" |
800*480; 800*600; 1024*600 |
8" |
800*600; 800*480; 1024*768 |
8.4" |
800*600 |
10.1" |
1024*600 |
10.4" |
800*600 |
12.1" |
800*600 |
15.1" |
1024*768 |
Appliaction
Widely Used In Many Various Industrial Field in more than 50 Countries.
