UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED

UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED

  • UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
  • UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
  • UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
  • UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: RAYTOP
Chứng nhận: CE, RoHS, FCC
Model Number: ETL1600400C
Thanh toán:
Minimum Order Quantity: 2K
Giá bán: Negotiable
Packaging Details: Gift box or blister,20 pcs per carton, customer package available.
Delivery Time: 20-25 work days.
Payment Terms: T/T, L/C
Supply Ability: 30000 Pcs monthly.
Tiếp xúc
Chi tiết sản phẩm
AC Cable: 1.2M Application: Delta, HP, IBM, Gateway, Liteon
Approval: CE, RoHS, FCC, SAA, UL DC Cable: 1.2M
EMI Standards: FCC Part 15B Function: Automatic
Input: AC100-240V Output Power: 90W
Plug: EU, US, SAA, CCC, UK Product Name: Universal Laptop Power Adapter
Protection: Short Circuit, Over Voltage, Over Current Operating Temperature: 0~40℃
Điểm nổi bật:

universal notebook power adapter

,

universal laptop power supply



UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED





Quick Detail:

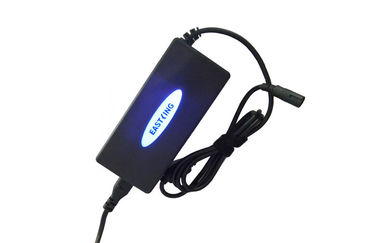

Universal laptop adapter 90W, automatic voltage DC 15-20V, with 1x USB port, 5V, 2.1A. The adapter has unique design come with LED luminous epoxy on the top cover. Customer logo will be added in the center of the LED ring to promote the brand image.

Specs:

Input: AC100-240V, 1.8A max.

Output: DC15/16/18/18.5/19/20V

Power Cord:

AC Cable: 2x0.75mm2, length: 1.2M

DC Cable: 18AWG, Copper, length: 1.2M

AC Plug: EU, UK, US, SAA, CCC

Features:

- Worldwide input voltage 100~240Vac;

- High efficiency, up to 88%;

- Exclusive model, attractive appearance.

- Protection: Short circuit protection, over voltage protection, over current protection.

- 10 different output connectors for top brands laptops.

- MTBF: 50,000 hours.



Approval: CE, RoHS, FCC

Warranty: 2 years

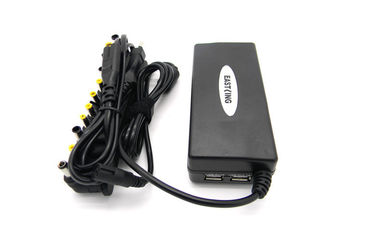

Contents: 1Adapter + 1AC Cable+1DC Cable +10 Connectors



Description:



This is an universal laptop AC Adapter come with unique design and 10 exchangeable and automatic tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. This adapter have automatic output voltage 15/16/18/18.5/19/20. Also it has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.



Note: please select correct output voltage before connecting the adapter with your laptops.



Applications:



External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices simultaneously like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on  when using your laptops.



Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.8A

Inrush Current

30A

Output

Rated Output Voltage

DC 15~20V

Output Voltage

DC15/16/18/18.5/19/20V

Rated Output Current

4.5A

USB Output

5V 1.0A + 5V 2.1A

Rated Power

90W

Ripple and Noise

120mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



- Open private model w/o extra cost for you;

- 0.3% free backup of order quantity;

- Direct factory price without middle man.

- High performance-to-price ratio;

- Perfect after-sale service
