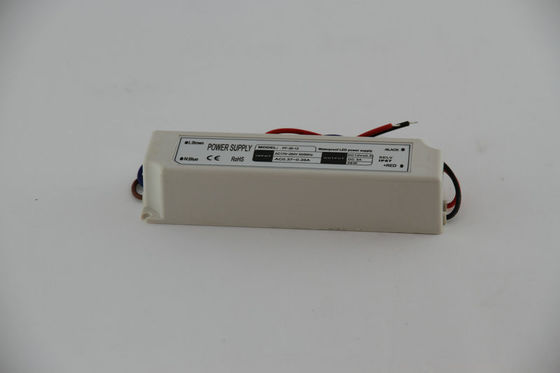

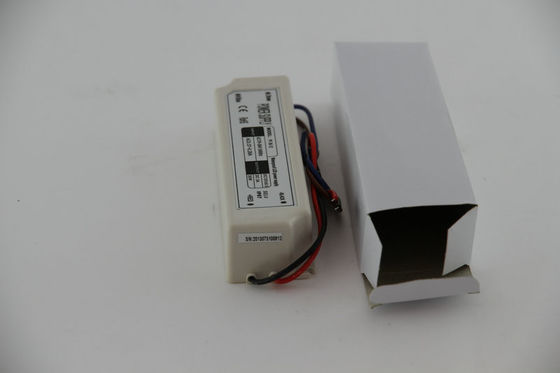

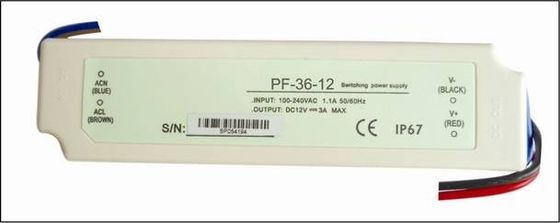

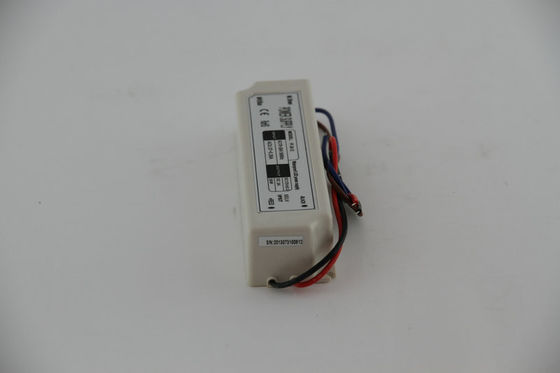

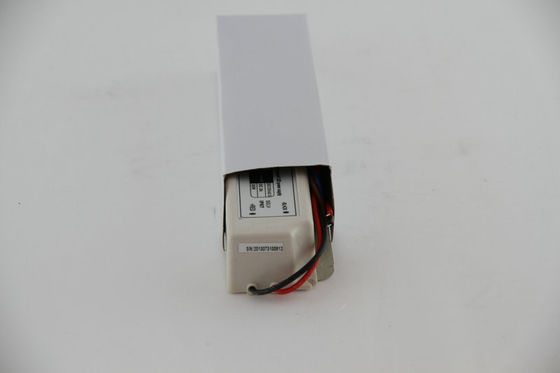

Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration

Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration

  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: DongDaHua
Chứng nhận: CE,RoHS
Model Number: PF-36-12
Thanh toán:
Minimum Order Quantity: 10
Giá bán: /
Packaging Details: as for your requirement
Delivery Time: as per your order quantity
Payment Terms: TT,paypal
Supply Ability: 4000pcs/Day
Tiếp xúc
Chi tiết sản phẩm
Product Name: Constant Voltage LED Driver DC output power: 36W
DC output voltage: 12V 24V Waterproof grade: IP67
Input voltage range: 110-240V AC Input frequency range: 47Hz~63Hz
Điểm nổi bật:

waterproof led driver

,

constant voltage led drivers

Withstand 300VAC Constant Voltage LED Driver 36W 3A For Moving Sign





Features:



* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty



Single Output LCD Display Constant Voltage LED Driver 36W 3A For Moving Sign



Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.





Descriptions:



Parameter

Model: PF-36

DC output voltage

12V±5%

24V±5%

Rated output current

3A

1.5A

Output current range

0-3A

0-1.5A

Ripple and Noise

120mVp-p



DC output power

36W

36W

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

151*42*30mm

weight

0.28 kg
