Place of Origin: | China |
Hàng hiệu: | DongDaHua |
Chứng nhận: | CE,RoHS |
Model Number: | PF-20-12 |
Minimum Order Quantity: | 10 |
---|---|
Giá bán: | / |
Packaging Details: | as for your requirement |
Delivery Time: | as per your order quantity |
Payment Terms: | TT,paypal |
Supply Ability: | 4000pcs/Day |
Điểm nổi bật: | waterproof led driver,constant voltage led drivers |
---|

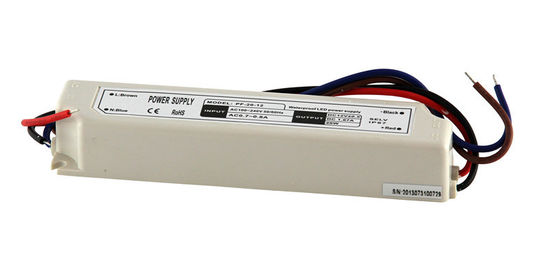

High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof
Quick detail:
Power: 20W
Input: AC170-264V
Output: DC 12V
Size: 139*30*20(mm)
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Brightness 12V 24V 20W Constant Voltage LED Driver / Waterproof 12v LED Driver
Descriptions:
Parameter | Model: PF-20 | |
DC output voltage | 12V±5% | 24V±5% |
Rated output current | 1.66A | 0.83A |
Output current range | 0-1.66A | 0-0.83A |
Ripple and Noise | 120mVp-p |
|
DC output power | 20W | 202 |
Efficiency | 85% | 85% |
Input voltage range | 110-240V AC | |
Short-circuit protection | Damage free short-circuit protection 3 times or more with automatic restoration | |
Overload protection | 105-150% hiccup with automatic restoration | |
Temp.coefficient | ±0.03%℃ ( 0-40℃ ) | |
Voltage tolerance | Input-output range: 1.5KvAC | |
Working environmental temp. | -10℃~+40℃ | |
Waterproof grade | IP67 | |
Input frequency range | 47Hz~63Hz | |
Storage temperature | -20℃~+85℃ | |
Dimension | 139*30*22mm | |
weight | 0.16 kg |
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
