Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V

Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V

  • Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V
Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V
Thông tin chi tiết sản phẩm:
Place of Origin: Guangdong China (Mainland)
Hàng hiệu: QUAWIN / OEM
Chứng nhận: CE,ROHS
Thanh toán:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: Netural labels,Antistatic bag /white box and standard export carton/customized Netrual packing/Cartoon box with less than 10KGS
Delivery Time: samples within 5 days,15 days for bulk orders
Payment Terms: L/C, D/A,D /P, T/T, Western Union, MoneyGram, Escrow, Paypal
Supply Ability: 500000 Piece/Pieces per Month
Tiếp xúc
Chi tiết sản phẩm
Rated Power: 40W Rated Voltage: DC 15V
Application: Led strips, led down lights IP Rating: IP67
name: Waterproof Led Driver Chứng nhận: UL, ROHS, CE
Điểm nổi bật:

LED strip Driver

,

power led driver

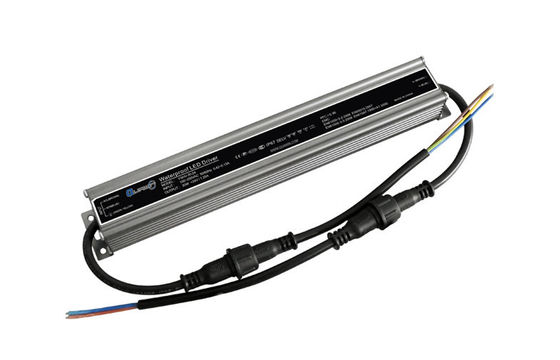

Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V



Quick Detail:



1. High efficiency 89%

2. Low cost, high reliability

3. Full range 90~264VAC

4. Protections:

   . Short-circuit

   . Over-load

   . Over-voltage

   . Over-temperature

5. Working temperature : -40℃ ~ + 70℃

6. IP67 design for indoor and outdoor applications

7. 2~3 times burn-in tests (+50℃/-40℃ at full load with over 14 hours)





Application



Led strips, led landscape lights, led down lights, led electronics display screen……etc





Specification Sheet

Model

QW150-026-AW (Note 1)



Output

Rated Voltage

15VDC

Ouput Current Range

0 ~ 2.6A

Rated Power

40W

Ripple and Noise (Max)(Note 2)

150mVp-p

Voltage Tolerance

±3.0%

Line Regulation

±1%

Load Regulation

±1.0%

Set-up, Rise Time

1500ms 80ms/230VAC, 2000ms 80ms/110VAC

Hold-up Time

50ms/230VAC at full load, 25ms/110VAC at full load





Input

Voltage Range

90~264VAC

Frequency Range Efficiency(Note 3)

47~63Hz

86.0%

AC Current

0.50A ~ 0.17A

Inrush Current

Cold Start at 45A/230VAC, Input at Ta: 25℃ cold start.

Leakage Current

﹤0.5mA at 230VAC, 60Hz Input





Protection

Current protection

±1% (current limiting type) Constant current limit, recovers after faulty problem
is removed

Over-Voltage

110% ~ 130%  (Shut down O/P voltage, repower on to recover)

Over-load

130% ~ 150%  (Shut down O/P voltage, repower on to recover)

Short Circuit

Hiccup mode, recovers automatically after faulty problem is removed

Lightning Protection
(Alternative)

Gas discharge tube automatically open to discharge, repower on to recover

Over-temperature

85℃±10℃ (Shut down O/P voltage, re-power on to recover)





Environment

Working Environment(Note 4)

-40℃ ~ +70℃

Working Humidity

20~90% RH non-condensing

Storage Environment &
Humidity

-45℃~+80℃

TEMP. Coefficient

±0.05%℃ (0~50℃)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes





Safety & EMC

Safety Standards

EN-61347-1, EN61347-2-13, IP67, ROHS Tests, Design refer to UL8750

Withstand Voltage

I/P-O/P: 3KVAC, IP-FG:1.5KVAC, OP-FG: 500VAC

Isolation Resistance

I/P-O/P IP-FG OP-FG: 100M Ohms/500VDC / 25℃ / 70% RH

EMC Emission

Compliance to EN55015: 2007, EN61547:1995+A1:2000; EN61000-3-2: 2006;
EN61000-3-3: 2008

EMC Immunity

Compliance to EN55015 EN61547 EN61000-4-2,3,4,5,6,8,11





Others

Life Span(Note 5)

≥50000Hrs (25~30℃)

No Load power consumption

≤1.0W

MTBF(Note 6)

250K hrs min, MIL-HDBK-217F (25℃ )

Dimension(Note 7)

248*36*29 mm (L*W*H)

Packing    (Note 8)

40pcs/carton

Weight

0.4Kg/pcs / 40pcs/CTN









Notes

All parameter are measured at normal temperature (+25 ~ +28℃)

1.  The rated voltage can be customized, such as 18V/27V… can be customized

2.  Ripple & Noise are measured at 20KHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf &
47uf parallel capacitor (at full load)

3. The efficiency measured at Max output voltage, and 230VAC with full load, if with 110VAC the efficiency
will be lowered 1% ~ 2%; Working 1~2 hours,efficiency will be higher 0.5% ~ 1% than the initial stage

4.  This series can work -45 ~ -50℃ (at full load), if need related parameter contact us.

5.  This measured at 120VAC, 80% ~85% load with environmental temperature about +25℃~+30℃, the outer housing temperature with +55℃ or so.

6.  This measured at 120VAC, 80% ~85% load with environmental temperature about +25℃~+30℃, the outer housing temperature with +55℃ or so.

7.  More details see the following mechanical draft.

8.  The 18pcs packing method is not suitable for led drivers with waterproof connector
