3 Pins AC Laptop Power Adapter

3 Pins AC Laptop Power Adapter

  • 3 Pins AC Laptop Power Adapter
  • 3 Pins AC Laptop Power Adapter
  • 3 Pins AC Laptop Power Adapter
3 Pins AC Laptop Power Adapter
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: WT
Chứng nhận: UL/CUL, PSE, TUV/GS,CE, CCC, SAA, ROHS
Model Number: WT1506000
Thanh toán:
Minimum Order Quantity: 500 pcs
Giá bán: negotiation
Packaging Details: PE bag+white box
Delivery Time: 15 Days
Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability: 6000 PCS/Day
Tiếp xúc
Chi tiết sản phẩm
Điểm nổi bật:

international travel power adapter

,

PC Power Adapter

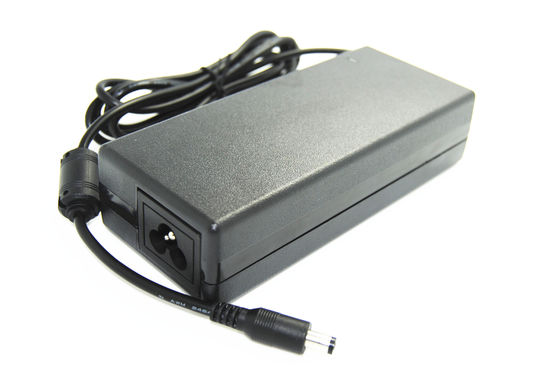

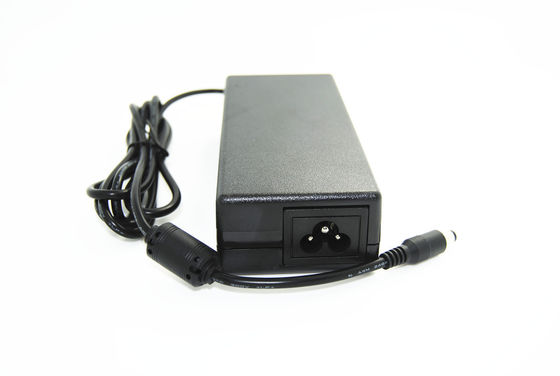

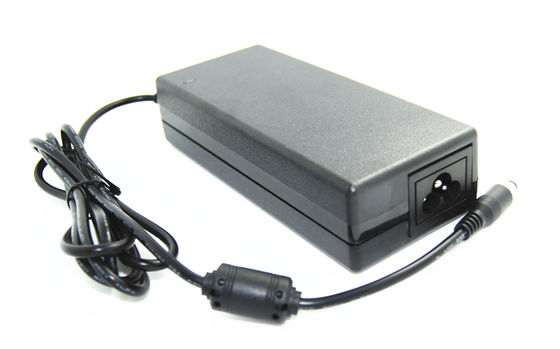

90W 15V DC 6A Output AC Laptop Power Adapter Fit for Lenovo Laptop , 3 Pins



Quick details:

  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output voltage: 15V 6A
  • Power: 90W
  • Dimension (L x W x H): 132*57*31mm
  • Socket type: C6, 3 pins



Description:



1. Surface cosiness,small size and convenient carrying

2. Low cost,high reliability and all cases are covered by ultrasonic

3. Built-in OVP,OCP and SCP

4. Universal input voltage:

  • a. I/P voltage 100-240VAC;50/60Hz
  • b. Turn on delay time≤3s
  • c. Inrush current≤30A/24V AC

5. O/P:

  • a. High accuracy and low noice
  • b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

  • a. Operation temperature:0°C-40°C;5%-90%RH
  • b. Storage temperature:-20°C-85°C;5%-95%RH

8. Cooling:Natural cooling

9. Energy standard:CEC/ERP

10. Safety standard:IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant





Warranty:

1 year

Certification:

UL/CUL, PSE, TUV/GS,CE, CCC, SAA and ROHS

Usage:

CCTV cameras, LCD monitors, Tablet PC and LED lights

Packaging:

PE bag+ white box  50 pcs/carton

Place of Origin:

China

Brand Name:

WT

Model Numeber

WT1506000

MOQ

500 pcs

Delivery Time:

15 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

6000 PCS/Day





Our Advantages:

  • Professional&experienced engineers
  • Good quality
  • Competitive price
  • Intime service
  • Free samples available
  • About 10 years experiences
  • OEM/ODM services are highly welcome
  • Flexible to meet dynamic requirements
  • High technology
  • Short Lead time
  • AC input power suitable for the world
  • Soft-start current can reduce the AC input impact efficiency
  • With short-circuit and overload protection
  • Compact size ,light weight
  • 100%full-load burning test
  • Installed with EMI filter ,minimum wave



Some Using Details:

  • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  • Connect power supply to the supplied unit.
  • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  • Power supply can only be installed indoors.
  • The power supply should be installed in a location with good airflow.
