10Watt Switching AC To DC Power Adapter Wall Mount For SATA

Thông tin chi tiết sản phẩm:

Place of Origin:	Shenzhen,China
Hàng hiệu:	RAYTOP
Chứng nhận:	CE, RoHS, FCC
Model Number:	ET0500200

Thanh toán:

Minimum Order Quantity:	2K
Giá bán:	Negotiable
Packaging Details:	PE Bag, Master Carton, Customer package available.
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	200,000 Pcs monthly.

Tiếp xúc

Chi tiết sản phẩm

AC Cable:	1.2M	Application:	Printer, ADSL, SATA
Approval:	CE, RoHS, FCC, UL, SAA	Cable Material:	Copper
DC Cable:	1.2M	EMI Standards:	FCC Part 15B
Feature:	High Efficency	Input:	AC100-240V
Operating Temperature:	0~40℃	Output:	DC5V
Output Power:	10Watt	Plug:	EU, US, UK, SAA, CCC
Product Name:	AC To DC Power Adapter	Protection:	Short Circuit, Over Voltage, Over Current
Điểm nổi bật:	ac to dc power converter , wall plug adapter

10Watt Switching AC To DC Power Adapter Wall Mount For SATA

Quick Detail:

10Watt Switching Power Adaptor, Desktop Style, DC 5V,2000A, 5.5x2.1mm Connector.

specs:

Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC5V, 2000mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Tip: 5.5x2.1mm (optional)

Approval: CE, RoHS, FCC, UL, SAA

Warranty: 2 years

Description:

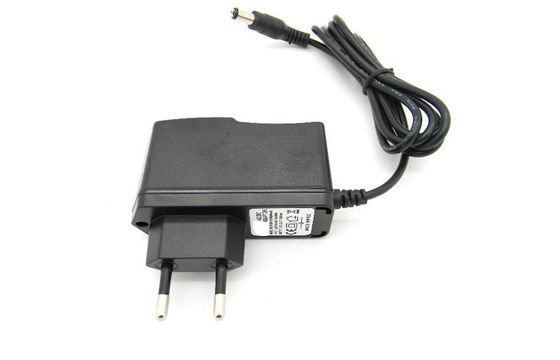

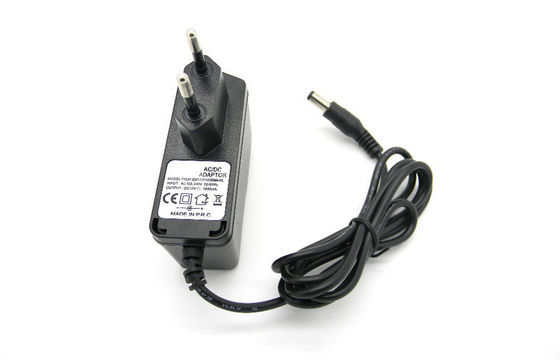

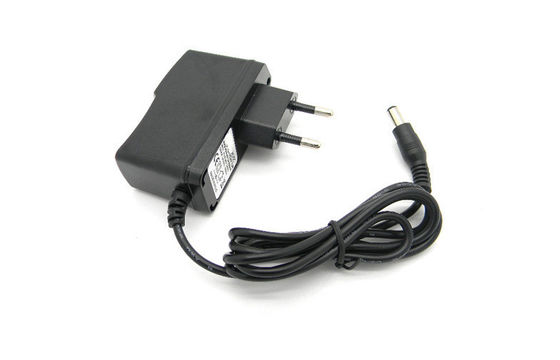

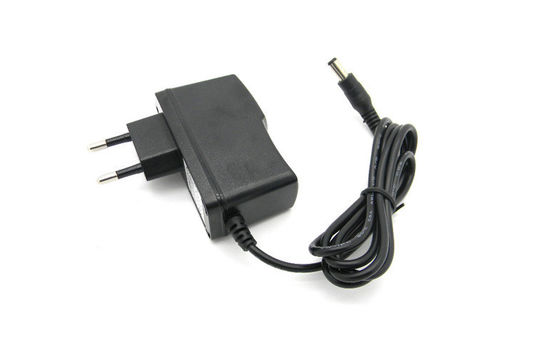

This is an AC to DC wall-mount power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note:

indoor use only.

Applications:

widely used for LED light, SATA, ADSL, digital photo frame, printer etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC5V
	Rated Output Current	2000mA
	Rated Power	10W
	Ripple and Noise	120mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
