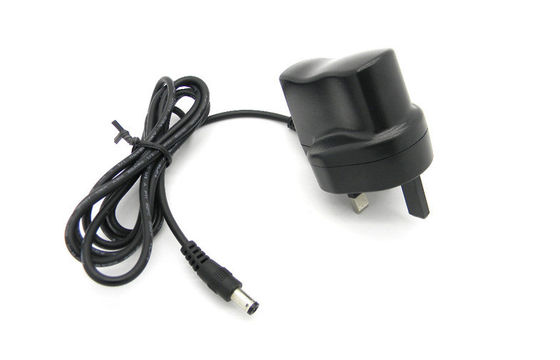

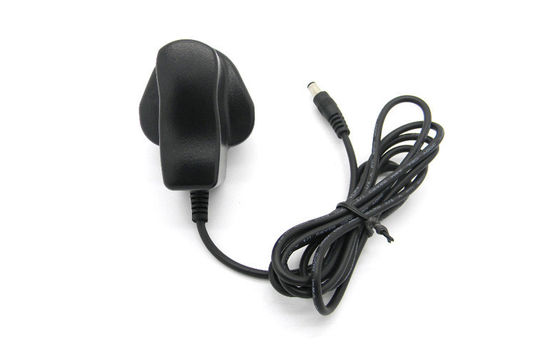

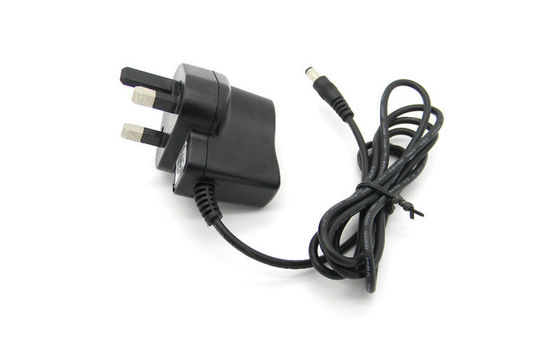

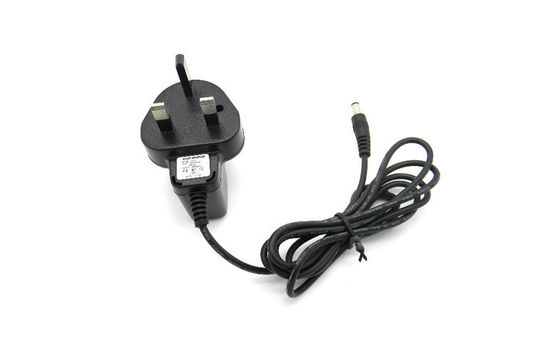

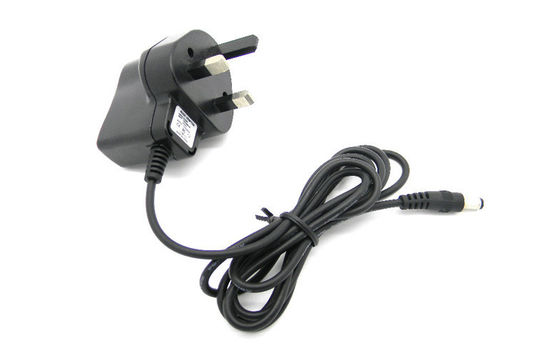

DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug

DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug

  • DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug
  • DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug
  • DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug
  • DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug
  • DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug
DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: RAYTOP
Chứng nhận: CE, RoHS, FCC
Model Number: ET0600500
Thanh toán:
Minimum Order Quantity: 2K
Giá bán: Negotiable
Packaging Details: PE Bag, Master Carton, Customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Tiếp xúc
Chi tiết sản phẩm
AC Cable: 1.2M Approval: CE, RoHS, FCC, UL, SAA
Cable Material: Copper DC Cable: 1.2M
EMI Standards: FCC Part 15 Class B Feature: High Efficency
Frequency: 50Hz / 60Hz Input: AC100-240V
MTBF: 50000 Hours Operating Temperature: 0~40℃
Output: DC6V Output Power: 3W
Plug: EU, US, UK, SAA, CCC Product Name: wall mount power supply
Protection: Short Circuit, Over Voltage, Over Current
Điểm nổi bật:

Wall Mount Power Supply

,

ac to dc power converter



DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug





Quick Detail:



Switching mode power adapter, DC6V 500mA, wall mount in conformity with CE, RoHS, FCC certification, with full protection functions.





Specs:



Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC6.5V, 500mA

DC Cable: 24AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC





Features:



-High efficiency:>85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

-Compact size, light weight.





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



This is an universal AC/DC adapter with rated output power 3Watt, the output connector size is 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





Note:



Indoor use only.





Applications:



used for cordless phone, sphygmomanometer,repeater etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

100mA

Inrush Current

30A

Output

Rated Output Voltage

DC6V

Rated Output Current

500mA

Rated Power

3W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.3W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 50Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
