1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug

1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug

  • 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
  • 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
  • 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: RAYTOP
Chứng nhận: CE, RoHS, FCC
Model Number: RT-MPA-03121200A
Thanh toán:
Minimum Order Quantity: 100 PCS
Giá bán: Negotiable
Packaging Details: Gift box and blister, 200 PCS/Carton
Delivery Time: 15-20 working days.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20,000 Pcs per month.
Tiếp xúc
Chi tiết sản phẩm
Input: Australia Plug Universal AC Adapter Cable Material: Copper
DC Cable: 1.2M EMI Standards: FCC Part 15B
Voltage Selection Mananer: Manual MTBF: 50000 Hours
Output: 3/5/6/7.5/9/12V DC Output Power: 12W
Plug: SAA Protection: Short Circuit, Over Voltage, Over Current
Điểm nổi bật:

Wall Mount Power Supply

,

ac to dc power converter

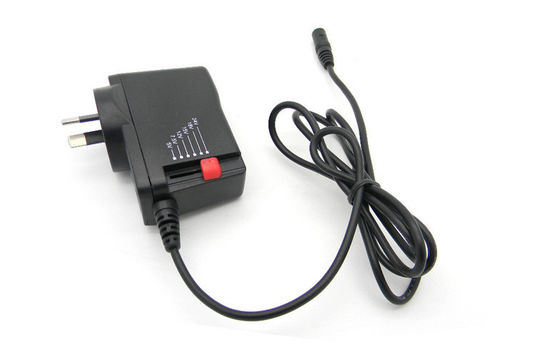

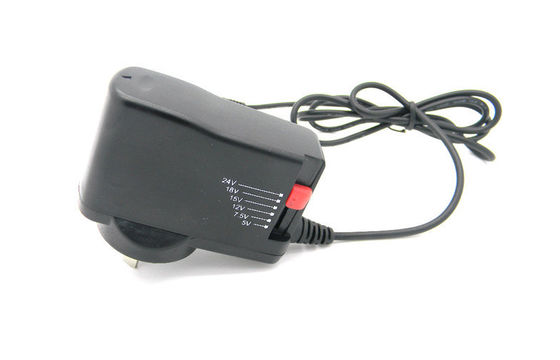

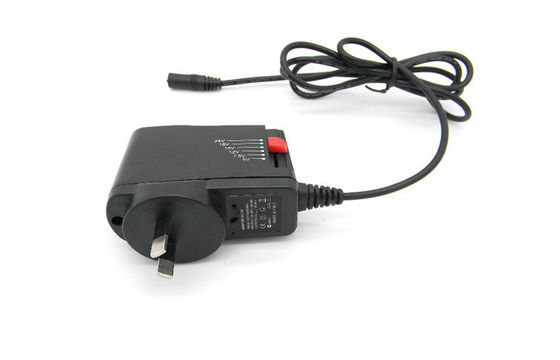

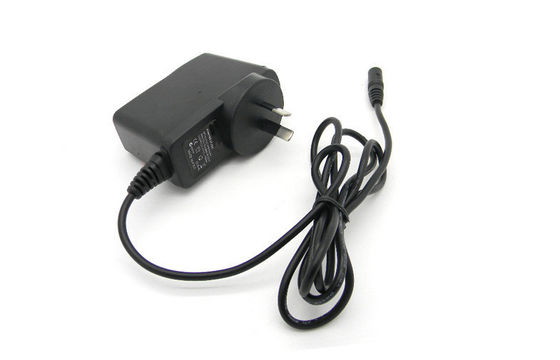

1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug





Quick Detail:



Switching mode power adapter with multiple rated output voltage DC 3.0/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many electronic devices such as Router, POS System, Security Cameras, Tablets etc.





Specs:



Input: AC100-240V, 200mA Max.

Frequency: 50/60Hz

Output: DC3.0/5.0/6.0/7.5/9.0/12.0V

DC Cable: 22AWG, Copper, length: 1.2M

Plug:SAA

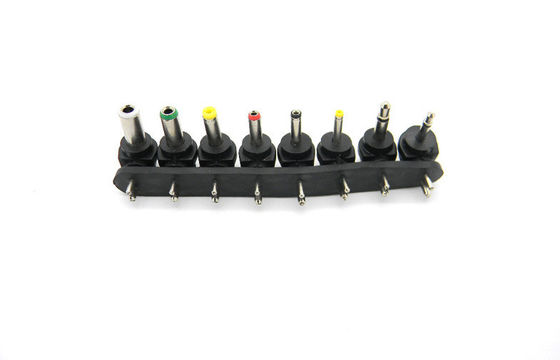

8 different size tips.





Features:



-High efficiency:>85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. It has high efficiency as well as steady performance.

Note: indoor use only.





Applications: widely used for Router, POS System, Security Cameras, Tablets etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

200mA

Inrush Current

30A

Output

Rated Output Voltage

DC3/5/6/7.5/9/12V

Rated Output Current

1000mA

Rated Power

12W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.3W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
