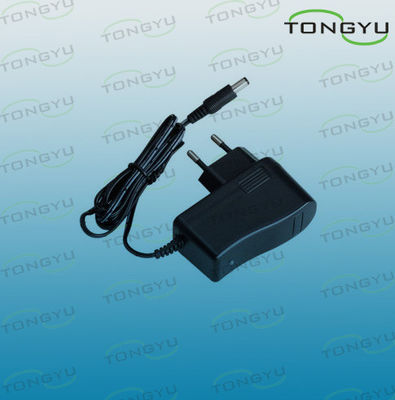

12W Wall Mounted Lithium Ion Battery Chargers for Portable HDD Enclosure

Thông tin chi tiết sản phẩm:

Place of Origin:	Guangdong,China
Hàng hiệu:	TONGYU
Chứng nhận:	CE,ROSH,UN38.3
Model Number:	12WCH

Thanh toán:

Minimum Order Quantity:	Negotiable
Giá bán:	Negotiable
Packaging Details:	Standard Industrial Package
Delivery Time:	10days for samples, 20days for batch orders
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	3000pcs/day

Tiếp xúc

Chi tiết sản phẩm

Điểm nổi bật:

mini usb car chargers

lithium polymer battery charger

Features:

1) Energy Standard: CEC, ERP LEVEL:IV
2) Small volume, light weight
3) Strong built for heavy duty and long usage performance
4) US plug, EU plug, UK plug, Aust plug optional
5) Output over-voltage protection, output short-circuit protection, reverse-battery protection
6) Compliance with UL, CE, ROHS,EMC
7) Safety Standard:CE, 3C,UL,FCC,PSE,SAA,GS
8) Wall-mount type , Convenient in use

12W Wall Mounted Lithium Ion Battery Chargers for Portable HDD Enclosure

Applications:
tablet pc android 30 , grinder,
digital photo frame, Portable HDD Enclosure,
HDD Player ,portable DVD, Small and medium sized LED players,
Other security products, etc

Specifications:

Input		Output		General		Environment		Safety Standard
Voltage	100-240Vac	Voltage	Refer to model list		Short Circuit	Operating Tem.	-10-40℃	UL/cUL UL60950
Frequency	47-63Hz	Current	Refer to model list	Efficiency	60% min	Moisture	5%-90%RH	CE EN60950
Current	0.5A max	Total Output Power	12W max	Withstand Voltage	3000minVac/10mA	Storage Tem.	-20-80℃	CB IEC60950
Inrush Current	30A max	Hold up Timer	115V/8mS	MTBF	20000Hmin	Cooling Mode	Nature	CCC GB9254
Standby Power Loss	0.3max	Ripple and Noise	1% peak-peak max	Insulation Resistance	20M/min			IEC61000 GB17625

Model list:

Product	Output Specification
	Voltage(VDC)	Current(mADC)	Voltage Tolerance	Power(W)
	3.3	2000max	±5%	6.6
	3.6	2000max	±5%	7.2
	4.2	2000max	±5%	8.4
	5.0	2000max	±5%	10.0
	6.0	2000max	±5%	12.0
	8.4	1500max	±5%	12.6
	12	1000max	±5%	12.0
	12.6	0950max	±5%	11.97
	16.8	0710max	±5%	11.92
	24	0500max	±5%	12.0
	36	0330max	±5%	11.88
