    Thông tin chi tiết sản phẩm:

    Place of Origin: China
    Hàng hiệu: WT
    Chứng nhận: UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS
    Model Number: WT0501000

    Thanh toán:

    Minimum Order Quantity: 500 pcs
    Giá bán: negotiation
    Packaging Details: PE bag+white box/PE bag without white box
    Delivery Time: 15 Days
    Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
    Supply Ability: 8000 PCS/Day
    Liên hệ với bây giờ
    Chi tiết sản phẩm

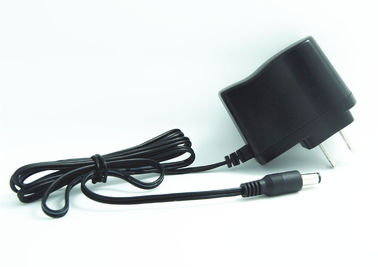

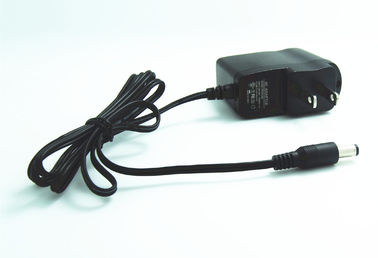

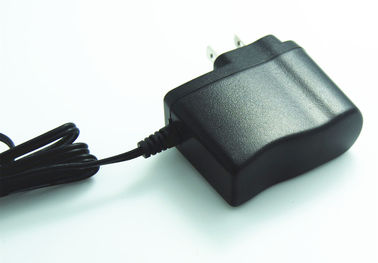

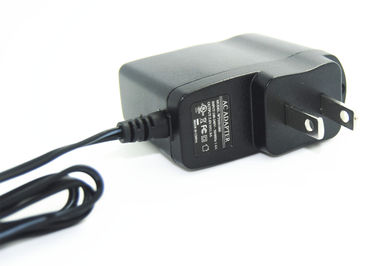

    5V 1A 5W Output Wall Mount Power Adapter with US Plug , 1.2M DC Cord



    Quick Details:

    • Input voltage: 100 to 240V AC, 50/60Hz
    • Output voltage: 5V 1A
    • Power: 5W
    • Dimension (L x W x H): 58*41*25mm
    • Socket type: US plug
    • Application: LCD monitors and LED lights



    Description:



    1. Surface cosiness, small size and convenient carrying

    2. Low cost, high reliability and all cases are covered by ultrasonic

    3. Built-in OVP, OCP and SCP

    4. Universal input voltage:

    a. I/P voltage 100-240VAC; 50/60Hz

    b. Turn on delay time≤3s

    c. Inrush current≤30A/24V AC

    5. O/P:

    a. High accuracy and low noice

    b. Hold up time ≥20mS

    6. Operation model: CV

    7. Environment:

    a. Operation temperature: 0°C-40°C;5%-90%RH

    b. Storage temperature: -20°C-85°C;5%-95%RH

    8. Cooling: Natural cooling

    9. Energy standard: CEC/ERP

    10. Safety standard: IEC/EN60950

    11. Insulation: hi-pot, 3,000V AC 60S 10mA

    12. Leakage current: 0.25mA (maximum)

    13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

    14. RoHS compliant



    Warranty:

    1 year

    Certification:

     UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

    Usage:

    CCTV cameras, LCD monitors, Tablet PC and LED lights

    Packaging:



    a. PE bag+ white box  84pcs/carton

    b. PE bag without white box  100pcs/carton

    Place of Origin:

    China(Mainland)

    Brand Name:

    WT

    Model Numeber:

    WT0501000

    MOQ:

    500 pcs

    Delivery Time:

    15 Days

    Payment Terms:

    T/T(30% in advance, 70% the balance must be paid before the delivery)

    Supply Ability:

    8000 PCS/Day





    Our Advantages:

    • Professional&experienced engineers
    • Good quality
    • Competitive price
    • Intime service
    • Free samples available
    • About 10 years experiences
    • OEM/ODM services are highly welcome
    • Flexible to meet dynamic requirements
    • High technology
    • Short Lead time
    • AC input power suitable for the world
    • Soft-start current can reduce the AC input impact efficiency
    • With short-circuit and overload protection
    • Compact size ,light weight
    • 100%full-load burning test
    • Installed with EMI filter ,minimum wave



    Some Using Details:

    • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
    • Connect power supply to the supplied unit.
    • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
    • Power supply can only be installed indoors.
    • The power supply should be installed in a location with good airflow.
