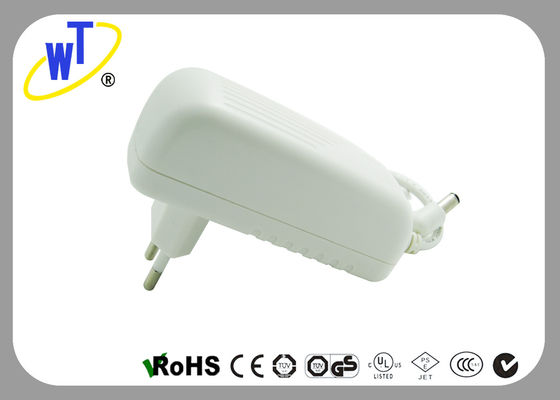

30W EU Plug Wall Mount Power Adapter for Instrumentation Equipment
Quick Details:
Description:
1. Surface cosiness, small size and convenient carrying
2. Low cost, high reliability and all cases are covered by ultrasonic
3. Built-in OVP, OCP and SCP
4. Universal input voltage:
a. I/P voltage 100-240VAC; 50/60Hz
b. Turn on delay time≤3s
c. Inrush current≤30A/24V AC
5. O/P:
a. High accuracy and low noice
b. Hold up time ≥20mS
6. Operation model: CV
7. Environment:
a. Operation temperature: 0°C-40°C;5%-90%RH
b. Storage temperature: -20°C-85°C;5%-95%RH
8. Cooling: Natural cooling
9. Energy standard: CEC/ERP
10. Safety standard: IEC/EN60950
11. Insulation: hi-pot, 3,000V AC 60S 10mA
12. Leakage current: 0.25mA (maximum)
13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
14. RoHS compliant
|
Warranty: |
12 months |
|
Certification: |
UL/CE/CCC/SAA/ROHS |
|
Usage: |
Instrumentation equipment |
|
Packaging:
|
a. PE bag+ white box b. PE bag without white box |
|
Place of Origin: |
China(Mainland) |
|
Brand Name: |
WT |
|
Model Numeber: |
WT1202500 |
|
MOQ: |
500 pcs |
|
Delivery Time: |
20 Days |
|
Payment Terms: |
T/T(30% in advance, 70% the balance must be paid before the delivery) |
|
Supply Ability: |
8000 PCS/Day |
| Model | I/P Condition | O/P Condition | Efficiency | R/N | Max Power | |||
| Voltage | Current | Regulation | ||||||
| Unit:(V) | Unit:(A) | Line(%) | Load(%) | min% | (mVp-p) | W | ||
| WTxxxyyyy | 100-240V AC 50/60Hz 1.6A Max |
3.3V-6.0V | 3.00 | 2% | 5% | 77 | 38 | 18 |
| 6.1V-9.0V | 3.00 | 2% | 5% | 83 | 38 | 27 | ||
| 9.1V-12.0V | 2.50-3.00 | 2% | 5% | 83.5 | 38 | 30 | ||
| 12.1V-24.0V | 1.25-2.50 | 2% | 5% | 83.5 | 38 | 30 | ||
| 24.1V-36.0V | 0.83-1.25 | 2% | 5% | 83.5 | 38 | 30 | ||
| 36.1V-48.0V | 0.62-0.83 | 2% | 5% | 83.5 | 38 | 30 | ||
