Name: Compact Size DC Motion Sensor 5.8GHz With Constant Current Led Driver
Brand: Merrytek
SKU: MC011D8
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (183 reviews)

Nhà Sản phẩm Liên tục hiện tại Led điều khiển

Compact Size DC Motion Sensor 5.8GHz With Constant Current Led Driver

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	Merrytek
Chứng nhận:	CE , R&TTE
Model Number:	MC011D8

Thanh toán:

Minimum Order Quantity:	100pcs
Giá bán:	Negotiation
Packaging Details:	Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time:	1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms:	T/T, Western Union
Supply Ability:	20,000pcs per Month

Tiếp xúc

Chi tiết sản phẩm

Product Name:	Microwave motion sensor	Rated load:	Max.50WLED light
Operating Voltage:	13 - 42vdc	Detection:	Max(D×H):16m×6m
HF system:	5.8GHz ±75MHz, ISM wave band	Size (L×W×H):	82x36.5x 25.5 mm(power supply part) 53x26.1x16mm(sensor part)
Approval:	CE & R&TTE	Operation temperature:	-20℃~50℃
Function:	ON-OFF 2 step dimming	IP Rating:	IP20
Điểm nổi bật:	high frequency sensor , compact motion sensor

Dimming function 5.8GHz DC operation Microwave motion sensor MC011D8, CE & R&TTE

Description

DC operation design
Dimming function working with simple constant current led driver
Hold time detection zone and daylight sensor can be set by DIP switch

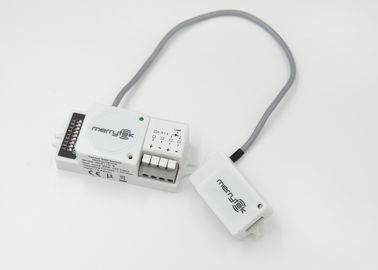

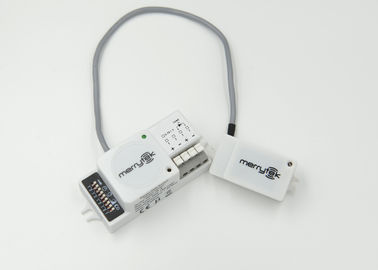

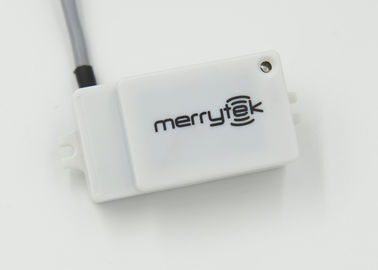

Detachable design between sensor and power supply part
Automatic switching based on motion and ambient light level.

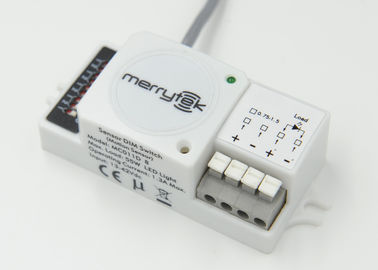

4-pole press-in terminal (L, N, N, L′), easy assembly.
Compact size, suitable to fix within most luminaries.
Wide detection area, range up to 16m in diameter.
The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.

On-off function

2- Step dimming function

Specifications:

Operating voltage	13 - 42Vdc
Rated load	Max.50WLED light
Operating current	1.3A max
HF system	5.8GHz±75MHz, ISM wave band
Power consumption	≤0.5W(standby), <1W(operation)
Transmitting power	<0.5mW
Detection zone Max.(D x H)	16m x 6m
Motion detection	0.5~3m/s
Detection angle	150°(wall installation) 360°(ceiling installation)
IP rating	IP20
Operation Temperature	-20℃~50℃
Hold time	0s / 5min / 30min / Disable
Detection sensitivity	25％/50％/75％/100％
Dimming level	10%/20%/30% / 40%
Stand-by period	10s / 90s / 3min / 10min
Dimming mode	Gradual dimming
Daylight Sensor	30lux/Disable
Life time	50000 hours
Guaranty	5 years
