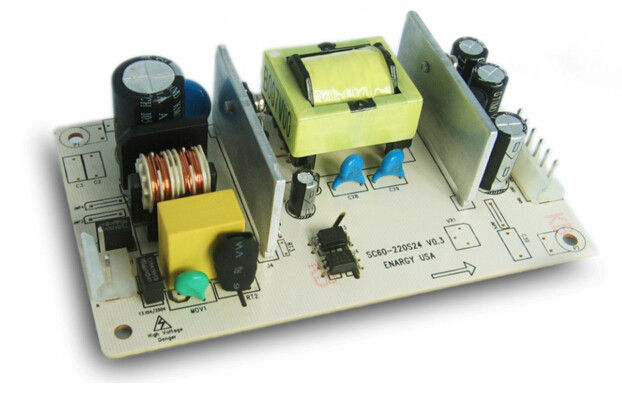

Single output AC-DC medical power converter Output 24V DC / 2.5A SC60C-220S24

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	Enargy
Model Number:	SC60C-220S24

Thanh toán:

Minimum Order Quantity:	1pcs
Giá bán:	Negotiation
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	15000Pcs/week

Tiếp xúc

Chi tiết sản phẩm

Điểm nổi bật:

medical grade power supplies

ac to dc converter

Medical Power Supply 60W Output 24VDC/2.5A SC60C-220S24

Key Features

AC input range: 90~264Vac

Single outputs: 24VDC/2.5A

High efficiency: 87%

Line regulation: ≤±2%

Load regulation: ≤±2%

Low ripple&noise: ≤150mV

Output short circuit protection

Output over current protection

Output over voltage protection

Natural cool

RoHS compliant

Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.

Electric Characteristics

Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Rated input voltage	100		240	Vac
AC input voltage range	90		264	Vac
Rated AC input frequency		50/60		Hz
AC input frequency range	47		63	Hz
Max. input current			2	A	Min. input voltage, full load
Input inrush current			60	A	Max. input voltage,25℃, first start
Efficiency	87			%	Rated input voltage, rated load
Turn-on delay time			2	S	220Vac input, full load
Turn-0ff hold time	10			ms	110Vac input, full load
Dissipation			2	W	No load

Output Characteristics

Parameter		Min	Typ	Max	Units	Notes
Output voltage range		24.00	24.30	24.6	Vdc
Output current range		0		2.5	A	220Vac input,3.6A for one second
Line Regulation				±2	%
Load Regulation				±2	%
Voltage stabilizing precision				±2
Ripple & noise				150	mV	20 MHz bandwidth,25℃
Dynamic response	Deviation			±5	%	25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 1A/us
Dynamic response	Settling time			400	uS	To within 1% Vout nom.
Turn-on rise time				50	ms	Full load,10%~90% Vout
Output voltage overshoot				±5	%
Output Capacitance				2200	μF

Protection Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output over voltage protection	26		30	Vdc	Lock-out,required to restart
Output over load protection	3		5	A	Hiccup
Short – Circuit Protection			10	mΩ	Hiccup

General Characteristics

Parameter	Min	Typ	Max	Units	Notes
MTBF	250			KHrs	Rated input, full load,25℃
Weight			180	g

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	0		70	℃	Figures1
Storage temperature	-20		85	℃
Relative humidity	20		90	%
Storage humidity	10		95	%
Altitude			3000	m
Cooling method	Natural cool

Safety Characteristics

Parameter		Min	Typ	Max	Units	Notes
Isolation voltage	Input to output	4000			Vac	5mA/1min, No arcing and breakdown
Isolation resistance	Input to output	10			MΩ	500Vdc/1min, normal atmospheric pressure, 90% humidity

EMC Characteristics

Item		Standards	Conditions	Notes
CE		EN55011 FCC Docket 20780 IEC60601-1-2	Class B	Pass system test
RE		EN55011 FCC Docket 20780 IEC60601-1-2	Class B	Pass system test
Harmonic		EN61000-3-2	A type lamps requirements	Criterion B
Voltage fluctuations and flicker		EN61000-3-3	Class A equipments requirements	Criterion B
Surge		EN61000-4-5	Differential mode ±1KV,common mode±2KV	Criterion B
DIP		EN61000-4-11 EN55024	Voltage dip to 0%Ut,10ms	Criterion B, test at phase 0, 90, 180 and 270
			Voltage dip to 40%Ut, 20ms
			Voltage dip to 70%Ut,50ms
ESD	Air discharge	EN61000-4-2	±8KV	Criterion B
ESD	Contact discharge	EN61000-4-2	±4KV	Criterion B
