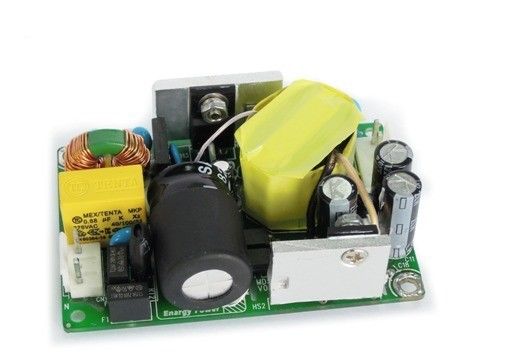

Medical Power Supply 40W Output 16.8V/2.4A MD40-220S16V8





Key Features

AC input range:90~264Vac

single outputs: 16.8V/2.4A

High efficiency:87%

Line regulation: ≤±1%

Load regulation: ≤±3%

Low ripple&noise:≤150mV

short circuit protection

Output over current protection

Output over voltage protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

100



240

Vac



AC input voltage range

90



264

Vac



Rated AC input frequency



50/60



Hz



AC input frequency range

47



63

Hz



Max. input current





1.5

A

90Vac

Input inrush current





60

A

Max. input voltage,25℃, first start

The floor drain current





0.5

mA

input264Vac



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage value

16.464



17.136

Vdc

Rated input; Half load

Output voltage range

16.296



17.30

Vdc



Output current range

0



2.4

A

Peak power 50W In the30s to maximum10%

Line Regulation





±1

%

Low line to high line; full load

Load Regulation





±1

%

No load to full load; nominal input

Voltage Regulation accuracy





±3

%



Dynamic response

Overshoot amplitude





±5

%

25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 1A/us

Recovery time





400

uS

Machine efficiency





85

%



Ripple & noise





150

mV

Rated input, full load, 20 MHz bandwidth

Output voltage overshoot





±5

%



Capacitance load



2200



μF





Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over voltage protection

18.48



23.52

Vdc

Hiccup Mode,Auto Recovery

Output over current protection

2.64



3.60

A

Output short circuit protection





10



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

250





KHrs

Rated input, full load,25℃

Weight





2.09(60)

Oz (g)





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-5



+45



Storage temperature

-20



+85



Relative humidity

20



90

%



Storage humidity

10



95

%



Altitude





3000

m



Cooling way



Natural cooling







Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

4000





Vac

5mA/1min, No arcing and breakdown

Input to ground

1500





Vac

Output to ground

500





Vdc

5mA/1min, No arcing and breakdown

Isolation resistance

Input to output

30





500Vdc/1min, normal atmospheric pressure, 90% humidity



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55022

Class B

Pass system test

RE

EN55022

Class B

Pass system test

Harmonic

EN61000-3-2

C type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B



Mechanical Outline

Length×width×heigth:76.2×50.8×28.0(mm), 3.0×2.0×1.1(in)

Medical ac-dc power supply module 40 Watt Output 16.8V / 2.4A MD40-220S16V8 0



Pin Designations

Item

Pin No

Name

Function

CN1

1

N

input voltage

2

Empty

3

L

CN2

1

Vout+

Positive output voltage

2

3

Vout-

Negative output voltage

4
