Place of Origin: | China |
Hàng hiệu: | Enargy |
Model Number: | MD60-12S24 |
Minimum Order Quantity: | 1pcs |
---|---|
Giá bán: | Negotiation |
Delivery Time: | 1-8 Weeks |
Payment Terms: | Negotiation |
Supply Ability: | 15000Pcs/week |
Điểm nổi bật: | medical power adapter |
---|

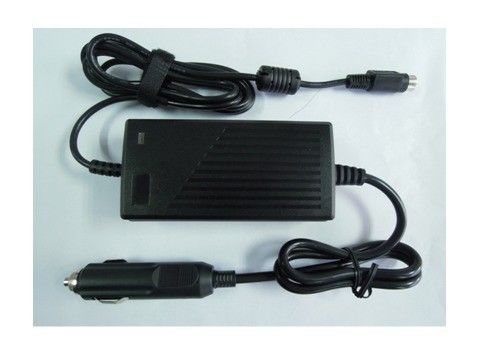

Medical Power Supply 60W Single Output DC-DC Adapter MD60-12S24
Key Features
Input voltage range: 9~32Vdc
Output rating: 60W
High efficiency: 86%
Voltage regulation: ≤±1%
Load regulation: ≤±3%
Low ripple&noise:≤240mV
short circuit protection
Output over voltage protection
Output over current protection
Over temperature protection
Natural cool
RoHS compliant
UL94V-0 flame-retarded rating
Product Overview
This DC-DC adapter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Electric Characteristics
Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Input voltage range |
9 |
24 |
32 |
Vdc |
|
Max. input current |
|
|
14 |
A |
12Vdc input voltage output transient 6A |
No-load power loss |
|
|
2 |
W |
|
Efficiency |
|
86 |
|
% |
Vin=12Vdc,Io=2.5A,Ta=25℃ |
Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output rating |
|
|
60 |
W |
Vin=9-32Vdc |
Output voltage range |
23.52 |
24 |
24.48 |
Vdc |
Vin=9-32Vdc |
Output current range |
0 |
|
2.5 |
A |
|
Voltage regulation |
|
|
±1 |
% |
|
Load Regulation |
|
|
±3 |
% |
|
Ripple & noise |
|
200 |
240 |
mV |
Rated input,full load, 20 MHz bandwidth |
Turn-on rise time |
|
|
50 |
ms |
Full load,10%~90% Vout |
Output Capacitance |
|
|
2200 |
μF |
|
Output voltage overshoot |
|
|
±5 |
% |
|
Protection Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Over voltage protection |
26.4 |
28.8 |
31.2 |
Vdc |
Hiccup . |
Short – Circuit Protection |
|
|
10 |
mΩ |
Hiccup |
Over temperature protection |
|
|
|
|
Auto- recovery |
Output over current protection |
6 |
|
7.5 |
A |
|
General Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
MTBF |
500 |
|
|
KHrs |
TR-NWT-000332; 80% load,300LFM, 40℃ Ta |
Weight |
|
350 |
|
g |
|
Environmental Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Operating temperature |
0 |
|
+40 |
℃ |
|
Storage temperature |
-40 |
|
+85 |
℃ |
|
Relative humidity |
0 |
|
90 |
% |
|
Altitude |
|
|
3000 |
m |
|
Cooling-down method |
|
|
|
|
Natural cooling |
Flame retardant grade |
|
|
|
|
UL94V-0 |
Mechanical Outline
Length×width×heigth:119×61×35 (mm),4.69×2.4×1.38 (in)
Connector designations
Connector code |
Function |
CON1 |
24Vdc output power line |
DC output power line, length 1.5m,16AWG,magnet ring,4pin output,magic stick |
|
CON2 |
12-32Vdc input power line |
Length 600mm,14AWG, internal 20A fuse |
