Công viên Gaoxin công nghiệp, Guangming New Zone, thành phố Thâm Quyến, tỉnh Quảng Đông, Trung Quốc | Angelwang66@126.com |
Place of Origin: | China |
Hàng hiệu: | VOTOO |
Chứng nhận: | CE,ROHS |
Model Number: | VP-2402500 |
Minimum Order Quantity: | 100pcs |
---|---|
Giá bán: | negotiation |
Packaging Details: | white box |
Delivery Time: | 5-10 days |
Payment Terms: | Ex works |
Supply Ability: | 1, 000, 000PCS/week |
Điểm nổi bật: | power adapter supply,external ac power adapter |
---|

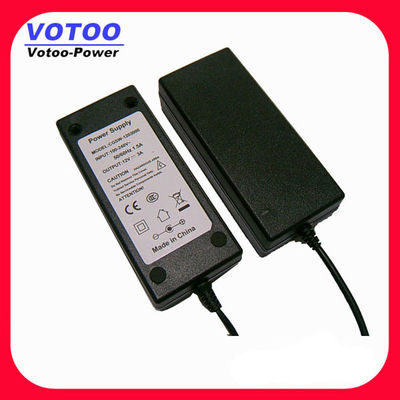

POS terminal adapter 24V 2.5A AC DC power supply with EU AC plug
Quick Detail:
Features:
o Output Voltage: 24V
o Output Current: 2500mA
o Power:60Watt
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:86%Min
o High Efficiency
o Short Circuit Protection
o Universal Input 100~240VAC 50/60Hz
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Ripple & Noise: 1% of Output Voltage
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
Weight: 370g
o Dimensions: 119.0 x52.0 x 32.0mm
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
Packing details:
1 piece per white box
40PCS/CTN
G.W.: 11.5KGS/CTN
N.W.: 12.5KGS/CTN
Specification:
OUTPUT |
DC VOLTAGE |
24V |
OUTPUT POWER |
60W |
|
CURRENT RANGE |
2500mA |
|
INPUT |
VOLTAGE RANGE |
110VAC -264V AC |
FREQUENCY RANGE |
50-60Hz |
|
EFFICIENCY(Typ.) |
86% |
|
ENVIRONMENT |
WORKING TEMP. |
-0°C ~ +40°C (Refer to output load derating curve) |
STORAGE TEMP.,HUMIDITY |
-10°C ~ +70°C 10~95% RH |
|
COOLING METHOD |
BY FREE AIR CONVECTION |
How to Install?
Applications:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. LED strip, LED lighting etc.
