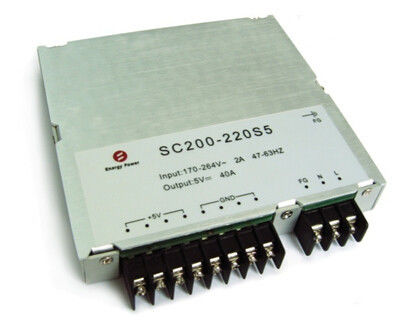

200W High Power AC-DC Power Supplies Single output 5V SC200-220S5

200W High Power AC-DC Power Supplies Single output 5V SC200-220S5

  • 200W High Power AC-DC Power Supplies Single output 5V SC200-220S5
200W High Power AC-DC Power Supplies Single output 5V SC200-220S5
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Enargy
Model Number: SC200-220S5
Thanh toán:
Minimum Order Quantity: 1pcs
Giá bán: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Tiếp xúc
Chi tiết sản phẩm
Điểm nổi bật:

ac to dc power supply

,

ac dc converter power supply

AC-DC Power Supplies 200W Output 5V SC200-220S5





Key Features

AC input range: 170~264Vac

Single outputs: 5V/40A

High efficiency: 89%

Line regulation: ≤±1%

Load regulation: ≤±1%

Low ripple&noise:≤200mV

short circuit protection

Output over current protection

Output short protection

Over temperature protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage



220



Vac



AC input voltage range

170



264

Vac



Rated AC input frequency



50/60



Hz



AC input frequency range

47



63

Hz



Max. input current





2

A

Min. input voltage, full load

Efficiency

AC input

86

89



%

Rated input voltage, rated load  Figure 1



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes



Output voltage range

5V

4.95

5

5.05

Vdc





Output current range

5V

0



40

A





Line Regulation





±1

%



Load Regulation





±1

%



Temperature Regulation



±0.03



% / °C

Over operating temperature range

Turn off hold up time

10





 mS

220Vac,full  load, from Vin turn off to Vout drop to 90%,Figure 4

Ripple & noise

5V





200

mV

Rated input, full load, 20 MHz bandwidth Figure 5

Dynamic response

Deviation





200

mV

50% to 75% to 50% Iout max, 0.1A/u





200

mV

50% to 75% to 50% Iout max, 2.5A/us

Output voltage overshoot





±5

%



Output Capacitance



20000



μF



Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over load protection

48



50

A

Hiccup

Short – Circuit Protection





10

Hiccup

Over-temperature protection

Shutdown



105



Auto recovery





Notes:

1.+5V will enter hiccup Auto recovery

General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

100





KHrs

TR-NWT-000332,80% load,300LFM,25℃

Weight





500

g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-20



+55



Storage temperature

-40



+85



Storage humidity

10



90

%



Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

1500





Vdc

5mA/1min, No arcing and breakdown

Input to ground

1000





Vac

Output to ground

500





Vdc

5mA/1min, No arcing and breakdown

Isolation resistance

Input to output

10





500Vdc/1min, normal atmospheric pressure, 90% humidity



Characteristics

Item

Standards

Conditions

Notes

Harmonic

EN61000-3-2

C type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.



Environmental Qualification

Parameter

Notes

Vibration

Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis

Mechanical Shock

Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction

Cold(in operation)

IEC60068-2-1  Ad

Damp heat

IEC60068-2-67  Cy

Temperature Cycling

-20°C to 85°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = 170Vac min to264Vac max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, 50000 hours

Solder ability

IEC60068-2-20



Standards compliance

Standards

Notes

UL60950-1



EN60950-1



EN60601-1



SCA 22.2NO.601.1



UL2601



CSA22.2NO.60950-1





Physical Information

Mechanical Outline

Length×width×heigth135×125×21(mm),5.315×4.921×0.826(inch),

200W High Power AC-DC Power Supplies Single output 5V SC200-220S5 0



Connector designations

Pin#

Name

Notes

1

N

AC input

2

L

AC input

3

FG

AC input ground

4

GND

Output ground

5

GND



6

GND



7

GND



8

+5V



9

+5V



10

+5V



11

+5V





Typical Wave and Curves

200W High Power AC-DC Power Supplies Single output 5V SC200-220S5 1200W High Power AC-DC Power Supplies Single output 5V SC200-220S5 2

Figure 1 Efficiency VS output current. 400LFM, 25°C

Figure 2: Output voltage ripple at nominal input voltage and rated load current (20 mV/div). Load capacitance: 1μF ceramic capacitor and 10μF tantalum capacitor. Bandwidth: 20 MHz.



200W High Power AC-DC Power Supplies Single output 5V SC200-220S5 3200W High Power AC-DC Power Supplies Single output 5V SC200-220S5 4

Figure 3: Output voltage response to step-change in load current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Load cap: 10μF, 100 mW ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (200mV/div)

Figure 4:Turn off  hold up time
