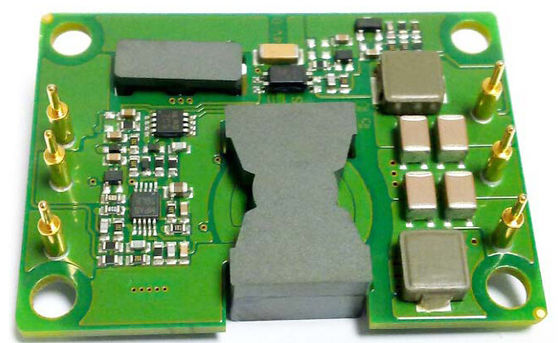

Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC

Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC

  • Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC
Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Enargy
Model Number: XD50-24DB15-POC
Thanh toán:
Minimum Order Quantity: 1pcs
Giá bán: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
Tiếp xúc
Chi tiết sản phẩm
Điểm nổi bật:

isolated dc dc converter

,

dc-dc converter module

DC-DC Converters 50W Output 15V XD50-24DB15-POC



Features:

Wide input range: 18‐36 V

Output power: 50W

High conversion efficiency: 90%

Line regulation to: ±1%

Load regulation to: ±1%

Input under‐voltage lock‐out

Output over‐current protection

Hiccup mode short circuit protection

Output over‐voltage protection

Enable (On/Off) Control

Isolation Voltage(Input to output): 1500Vdc



Product Overview:

These DC‐DC converter modules use advanced power

processing, control and packaging technologies to

provide the performance, flexibility, reliability and cost

effectiveness of a mature power component. High

frequency Active Clamp switching provides high power

density with low noise and high efficiency.



1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





45

Vdc

Continuous, non-operating





40

Vdc

Continuous, operating





45

Vdc

Impulse voltage,<100ms,operating

Isolation voltage





2000

Vdc

Input to output

Operating Temperature

-40



100

In view of PCB Temperature

Storage Temperature

-55



115



Enable to -Vin Voltage

-2



10

Vdc





1.2 Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating input voltage range

18

24

36

Vdc



Input Under-Voltage Lockout



17.5

17.9

Vdc

Recovery point

16

16.5



Vdc

Protect point

Maximum Input Current





3.5

A

Vin min,output full load

Efficiency



89



%

Rated input;rated load

Dissipation,Standby



4



W

No load



1.3 Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

+14.85

+15.00

+15.15

Vdc

+Vout

Rated input voltage,Small load

-14.50

-15.00

-15.50

Vdc

-Vout

Output Voltage Range

+14.80

+15.00

+15.20

Vdc

+Vout



-14.40

-15.00

-15.60

Vdc

-Vout



Output Current Range

0.2



1.7

A

+Vout



0.2



1.7

A

-Vout



Voltage Regulation





±1

%

+Vout







±4

%

-Vout



Load Regulation





±1

%

+Vout







±4

%

-Vout



Output over-current protection



2.4



A

+Vout

90% of the rated output voltage



2.4



A

-Vout

Output Short Circui Current

0



5

A

+Vout



0



5

A

-Vout



RMS



15



mV

+Vout

Nominal input; full load; 20MHz,bandwidth



15



mV

-Vout

peak-to-peak



50



mV

+Vout



50



mV

-Vout

Capacitive load from themachine





2200

μF

+Vout







2200

μF

-Vout





1.4 Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change in Output Current



450



mV

+Vout

Load change50%~75%~50% Iout

max,di/dt= 0.1A/μS



450



mV

-Vout



450



mV

+Vout

Load change50%~75%~50% Iout

max,di/dt= 0.5A/μS



450



mV

-Vout

Dynamic recovery time





300

uS





Turn-on Time



5



mS





Turn-off overshoot





5

%







1.5  Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

180

200

230

KHz



Enable Current





1

mA



Enable (ON/OFF)

1



15

Vdc

ON-control, Logic high or floating

-0.5



0.3

Vdc

OFF-control, Logic low

Over-Load Protection

110



130

%



Short-Circuit Protection)





65

Hiccup mode,since the recovery



1.6 Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1500





Vdc

Input to Output

1500





Vdc

In to base

500





Vdc

Out to base

Isolation Resistance

100





At 500VDC to test it when atmospheric

pressure and R.H. is 90%

Isolation Capacitance



1000



pF





2.General Characteristics

Parameter

Min

Typ

Max

Units

Notes

Weight



25



g



MTBF

1





MHrs

TR-NWT-000332; 80% load,300LFM,

40℃ Ta



3.Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-40



100

Extended, base PCB temperature

Storage Temperature

-55



105

Ambient

Temperature Coefficient





±0.02

%/℃



Humidity

20



95

%R.H.

Humidity



4.Standards Compliance

Parameter

Notes

MIL-STD-704



MIL-STD-1399



MIL-STD-810



UL/cUL60950



EN60950



GB4943



IEC 61000-4-2





5. WORK WAVE



Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 0Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 1

Figure 1: Efficiency at nominal output voltage vs. load
current for minimum, nominal, and maximum input
voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and
60% rated power vs. airflow rate for ambient air
temperatures of 25°C.



Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 2Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 3

Figure 3: Maximum output power derating curves vs.
ambient air temperature for airflow rates of 0 LFM
through 400 LFM with air flowing from pin 1 to pin 3
(nominal input voltage).

Figure 4: Output voltage ripple at nominal input voltage
and rated load current (20 mV/div). Load capacitance:
0.1μF ceramic capacitor and 10μF tantalum capacitor.
Bandwidth: 20 MHz.



Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 4Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 5

Figure 5: Thermal plot of converter at full load
current(50W) with 25°C air flowing at the rate of
200 LFM. Air is flowing across the converter
from pin 3 to pin 1(nominal input voltage).

Figure 6: Thermal plot of converter at full load
current(50W) with 25°C air flowing at the rate of
200 LFM. Air is flowing across the converter from
input to output (nominal input voltage).



Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 6Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 7

Figure 7: Turn-on transient at full load (resistive load)
(10ms/div).Input voltage pre-applied.
Ch1:Vout1(10V/div);Ch2:Vout2(10V/div);
Ch3:ON/OFF Input (1V/div).

Figure 8: Shut-down fall time at full load (10 ms/div).
Ch1:Vout1(10V/div); Ch2:Vout2(10V/div);
Ch3:ON/OFF Input (1V/div).



Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 8Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 9

Figure 9: Output voltage response to step-change in
load current (50%-75%-50% of Iout(max); dI/dt =
0.5A/μs). Load cap: 10μF, 100mΩ ESR tantalum
capacitor and 0.1μF ceramic capacitor.
Ch 1: Vout1(200mV/div)

Figure 10: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max): dI/dt = 0.5A/μs).
Load cap: 10μF, 30 mΩ ESR tantalum capacitor and 1μF
ceramic cap. Ch 2: Vout2(200mV/div).



6.Physical Information
6.1 Mechanical Outline

Wide input range 18‐36 Volt DC-DC Converters 50W XD50-24DB15-POC 10

Notes:
1. All pins are (1.02mm) dia. with . (2.2mm) dia. standoff shoulders.
2.Tolerances: x.x ±0.5mm, x.xx ±0.25mm



6.2 Pin Designations

Pin No.

Name

Function

1

Enable

TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.

2

Vin(-)

Negative input voltage

3

Vin(+)

Positive input voltage

4

Vout(+)

Positive output voltage

5

Com

Ground

6

Trim

Negative output voltage
