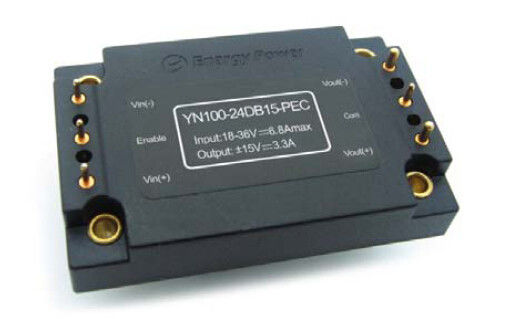

18 - 36V input range DC-DC Converters 100W Output 15V YN100-24DB15-PEC

18 - 36V input range DC-DC Converters 100W Output 15V YN100-24DB15-PEC

  • 18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC
18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Enargy
Model Number: YN100-24DB15-PEC
Thanh toán:
Minimum Order Quantity: 1pcs
Giá bán: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
Tiếp xúc
Chi tiết sản phẩm
Điểm nổi bật:

isolated dc dc converter

,

high power dc dc converter

DC-DC Converters 100W Output 15V YN100-24DB15-PEC



Key Features

Output power: 100W

Wide input range: 18-36Vdc

High conversion efficiency: Up to 91%

Line regulation to ±1%

Load regulation to ±1%

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-Current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out



Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.



1. Electric Characteristics



1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     40 Vdc Continuous, non-operating
    38 Vdc Continuous, operating
    40 Vdc Operating transient protection,<100mS
Isolation Voltage     2000 Vdc Input to Output
Operating Temperature -40   100 In view of PCB Temperature
Storage Temperature -55   105
Enable to -Vin Voltage -0.5   10 Vdc



1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 18 24 36 Vdc
Under-Voltage Lockout   17.5 17.9 Vdc Recovery point
15.5 16.5   Vdc Protect point
Maximum Input Current     6.8 A Vin min,Output full load
Efficiency   90   % Rated input;Rated load
Dissipation,standby     12 W No Load



1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set point 14.85 15 15.15 Vdc +Vout Rated input voltage,No load
-14.85 -15 -15.15 Vdc -Vout
Output Voltage Range 14.55 15 15.45 Vdc +Vout Rated input voltage, load
-14.55 -15 -15.45 Vdc -Vout
Output Current Range 0   3.33 A +Vout Two at the same time increase the load
0   3.33 A -Vout
Line Regulation   ±0.5 ±1 % +Vout Two at the same time increase the load
  ±0.5 ±1 % -Vout
Load Regulation   ±0.5 ±1 % +Vout Two at the same time increase the load
  ±0.5 ±1 % -Vout

Output over-Current

protection

3.5 4 4.4 A +Vout 95% of the rated output voltage,Load
3.5 4 4.4 A -Vout
Short Circuit Current     4 A +Vout Two simultaneous short-circuit
    4 A -Vout
Ripple (RMS)   100   mV +Vout

Nominal input; full load; 20 MHz

bandwidth.

  100   mV -Vout
Noise(Peak-to-Peak)   150   mV +Vout
  150   mV -Vout

Capacitive load

from themachine

    2200 μF +Vout
    2200 μF -Vout



1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change In Output Current   480   mV

50% to 75% to 50% Iout max; (di/dt=

0.1A/μs)

  600   mV

50% to 75% to 50% Iout max; (di/dt=

2.5A/μs)

Dynamic recovery time   300   μS
Turn-on Time   30   mS Starting from vin to vout rise to 90%
Turn-off overshoot   5   mS



1.5 Functional Characteristics

Parameter Min Typ Max Units Notes
Switching Frequency 187 230 255 KHz
Enable Current     10 mA
Enable (ON/OFF) 3.5   10 Vdc ON-control, Logic high or floating
-0.5   0.5 Vdc OFF-control, Logic low
Over-Load Protection 105 115 130 % Current mode,Pulse current(100% rared load)
Short circuit protection     65 Hiccup mode,since the recovery
Over- Temperature Protection   105   Protect point,In view of PCB Temperature
  90   Recovery point



1.6 Isolation Characteristics

Parameter Min Typ Max Units Notes
Isolation Voltage 1500     Vdc Input to Output
1500     Vdc Input to Base
500     Vdc Output to Base
Isolation Resistance 100

At 500Vdc to test it when atmospheric

pressure and R.H. is 90%

Isolation Capacitance   1000   pF



2. General Characteristics

Parameter Min Typ Max Units Notes
Weight   2.8(80)   Oz (g)
MTBF ( calculated ) 1     MHrs

TR-NWT-000332; 80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter Min Typ Max Units Notes
Operating Temperature -40   100 base PCB temperature
Storage Temperature -55   105 Ambient
Temperature Coefficient     ±0.02 %/℃
Humidity 20   95 %R.H.



4. Standards Compliance

Parameter Notes
MIL-STD-704
MIL-STD-1399
MIL-STD-810
UL/cUL60950
EN60950
GB4943
IEC 61000-4-2



5. Typical Wave And Curves

18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 018 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 1



Figure 1: Efficiency at nominal output voltage vs.

load current for minimum, nominal, and maximum

input voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and 60%

rated power vs. airflow rate for ambient air temperatures of

25°C, 40°C, and 55°C (nominal input voltage).

18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 218 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 3



Figure 3: Maximum output power derating curves vs.

ambient air temperature for airflow rates of 0 LFM through

400 LFM with air flowing from pin 3 to pin 1 (nominal input

voltage).

Figure 4: Output voltage ripple at nominal input

voltage and rated load current (20 mV/div). Load

capacitance: 0.1μF ceramic capacitor and 10μF tantalum

capacitor. Bandwidth: 20 MHz.

18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 418 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 5



Figure 5: Thermal plot of converter at full load

current(150W) with 25°C air flowing at the rate of

200 LFM. Air is flowing across the converter from

pin 3 to pin 1 (nominal input voltage).

Figure 6: Thermal plot of converter at full load

current(150W) with 25°C air flowing at the rate of

200 LFM. Air is flowing across the converter from

input to output (nominal input voltage).

18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 618 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 7

Figure 7: Turn-on transient at full load (resistive load)

(20ms/div).Input voltage pre-applied.

Ch1:Vout (10V/div);Ch2:ON/OFF Input (2V/div)

Figure 8: Shut-down fall time at full load (40 ms/div).

Ch1:Vout (10V/div);Ch2:ON/OFF Input (2V/div)

18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 818 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 9

Figure 9: Output voltage response to step-change in

load current (50%-75%-50% of Iout(max); dI/dt =

0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalum

capacitor and 0.1μF ceramic capacitor. Ch1: Vout+

(200mV/div),Ch2: Vout- (200mV/div).

Figure 10: Output voltage response to step-change in load

current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs). Load

cap: 470μF, 30 mW ESR tantalum capacitor and 0.1μF ceramic

cap. Ch1: Vout+ (200mV/div),Ch2: Vout- (200mV/div).



6. Physical Information



6.1 Mechanical Outline



18 - 36V  input range  DC-DC Converters 100W Output 15V YN100-24DB15-PEC 10

Notes:

1. Pins 4, 6 are 1.52mm dia. with 2.16mm dia.

2. Pins 1-3 are 1.02mm dia. with 1.65mm dia.

3. Tolerances: x.x ±0.5mm.x.xx ±0.25mm



6.2 Pin Designations

Pin No. Name Function
1 Vin(+) Positive input voltage
2 Enable TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.
3 Vin(-) Negative input voltage
4 Vout(-) Negative output voltage
5 Com Ground
6 Vout(+) Positive output voltage
